NOTE:Different options ,please select carefully.if you have problem , please conatct us before make order.

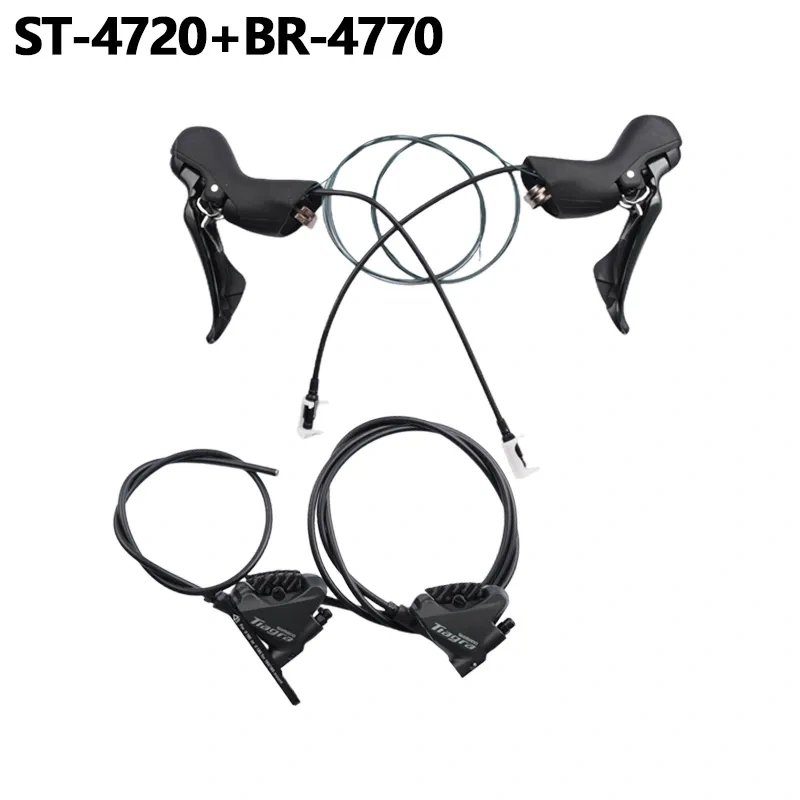

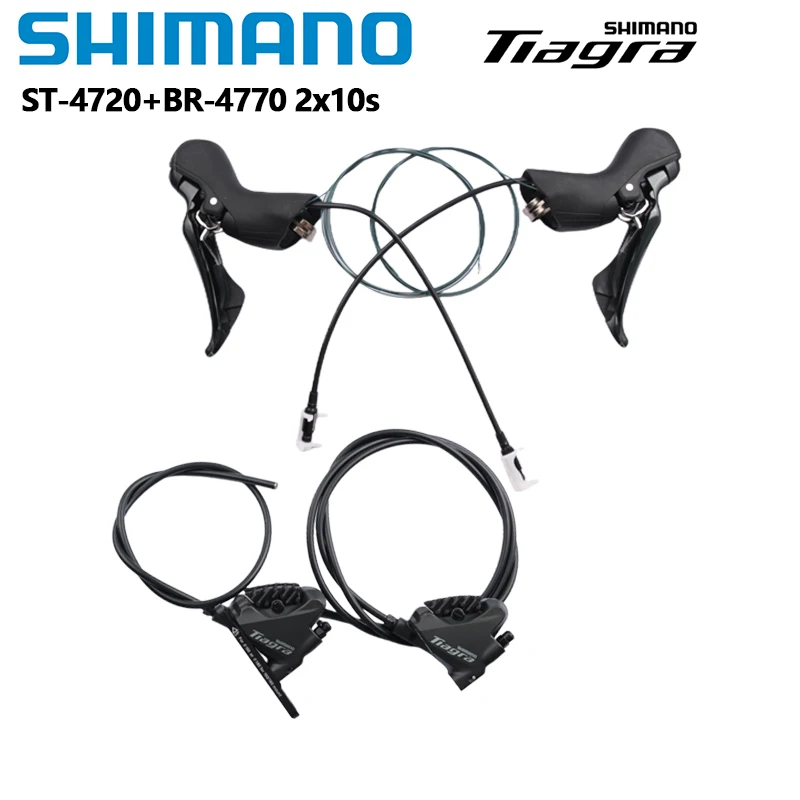

Shimano Tiagra 4700 ST-4720 BR-4770 Hydraulic Disc Brake Dual Control Right Left Lever 10 Speed 4770 Brake For Road Bike Bicycle

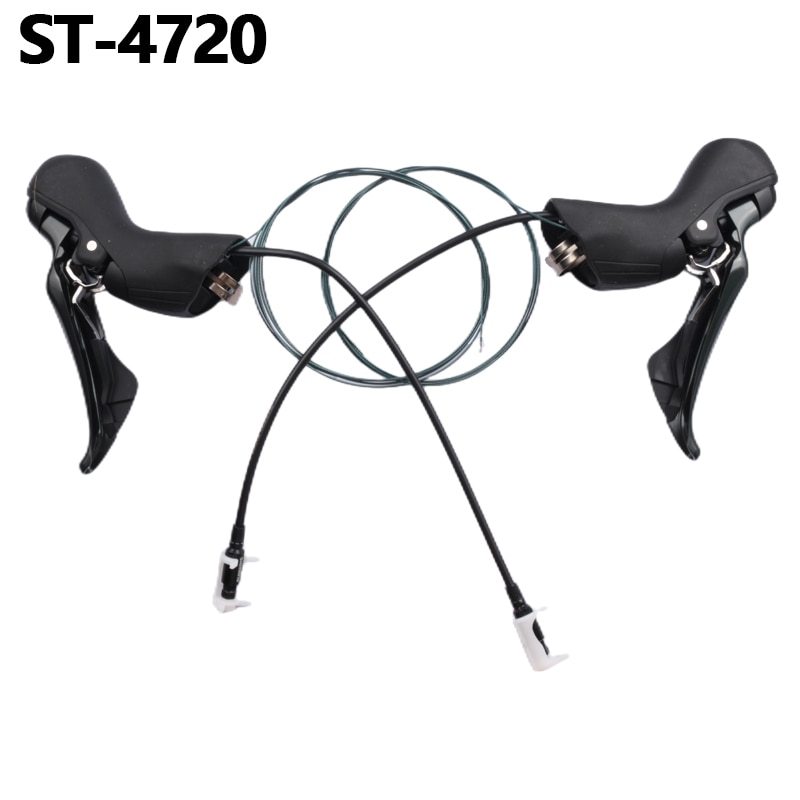

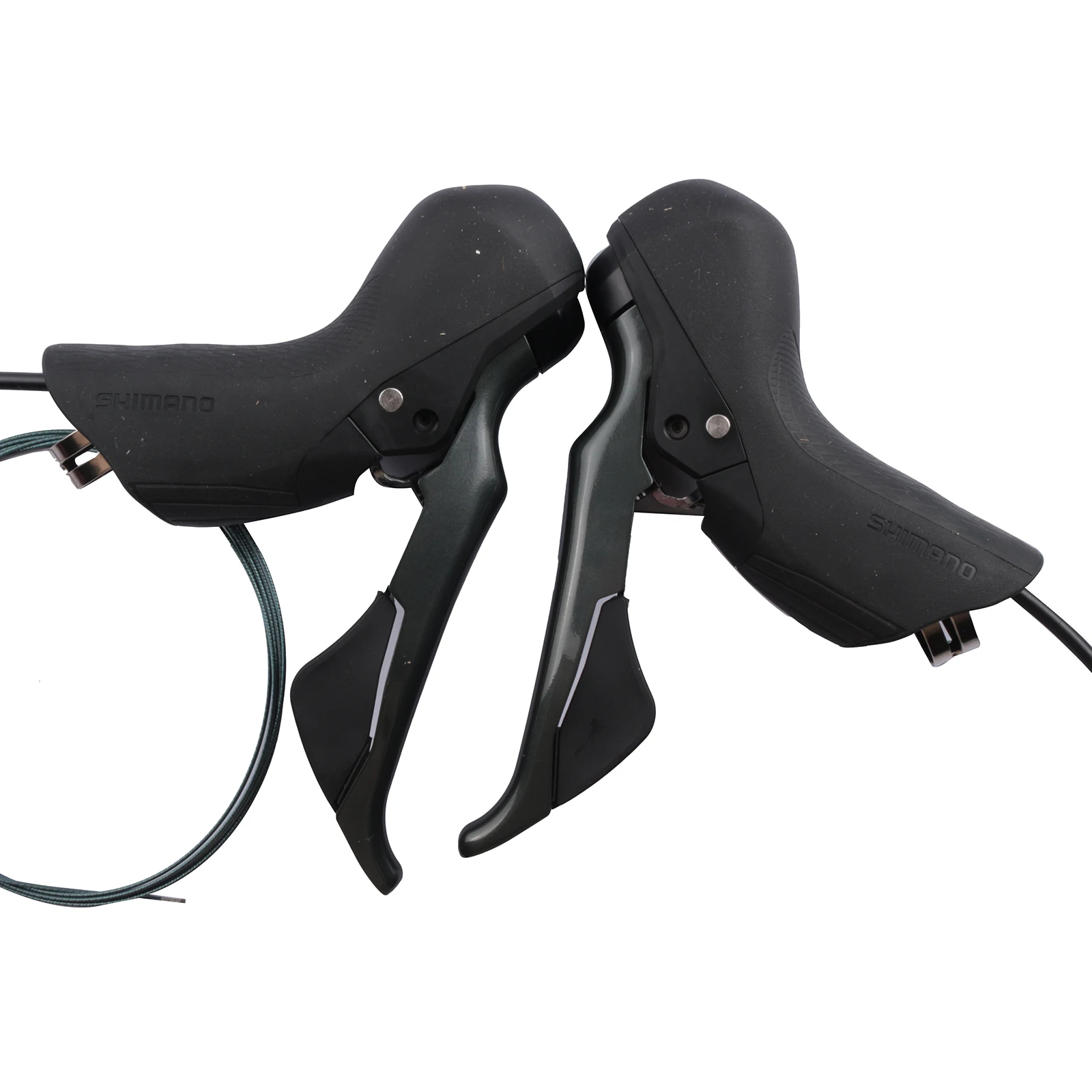

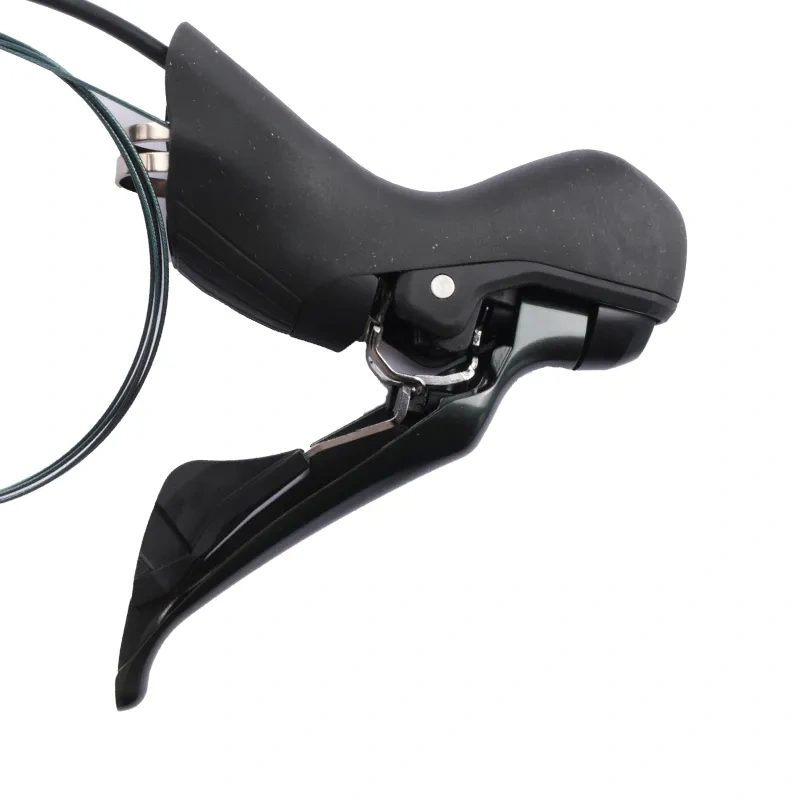

MODEL NO: ST-4720
SERIES: SHIMANO TIAGRA 4700 Series
Color: Series color
Bracket cover color|1: Standard
Shifter type: DUAL CONTROL LEVER
Shift lever|Rear speeds: 10
Shift lever|Max. multiple shifts (main lever/rear): 2
Shift lever|Compatible rear derailleur type: Road 10-speed
Brake lever|Brake hose (Kit): SM-BH90-J-SSR SM-BH90-JK-SSR
Brake lever|Hose joint: Straight
Brake lever specifications|Brake hose color (kit)|1: Black
Brake lever|Recommended brake caliper: BR-4770
Brake lever|Brake fluid|SHIMANO Mineral Oil: SHIMANO Mineral
Brake lever|Reach adjust|Tool: ✔
Brake lever|Reach adjust: ✔
Brake lever|Clamp band (mm): 23.8-24.2
Brake lever|Funnel bleeding: ✔
Clamp band|Diameter (mm): 23.8-24.2
Shifter Lever body|Release: Resin & Steel
Shift lever cable|Outer casing|Lever side: OT-SP41
Shift lever cable|Outer casing|Rear derailleur side: OT-SP41
Shift lever cable|Inner cable|OPTISLICK: ✔

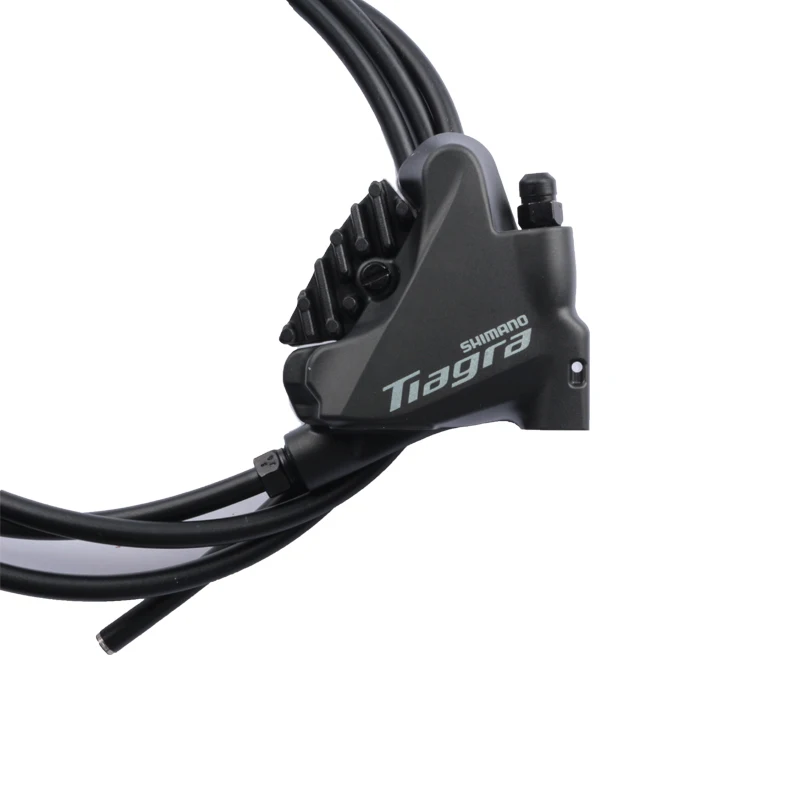

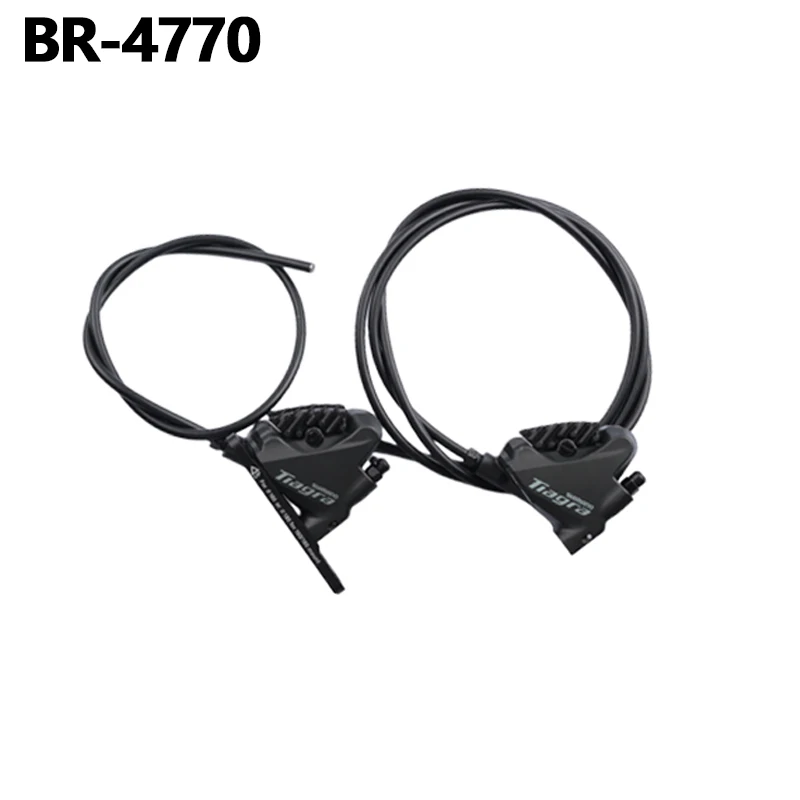

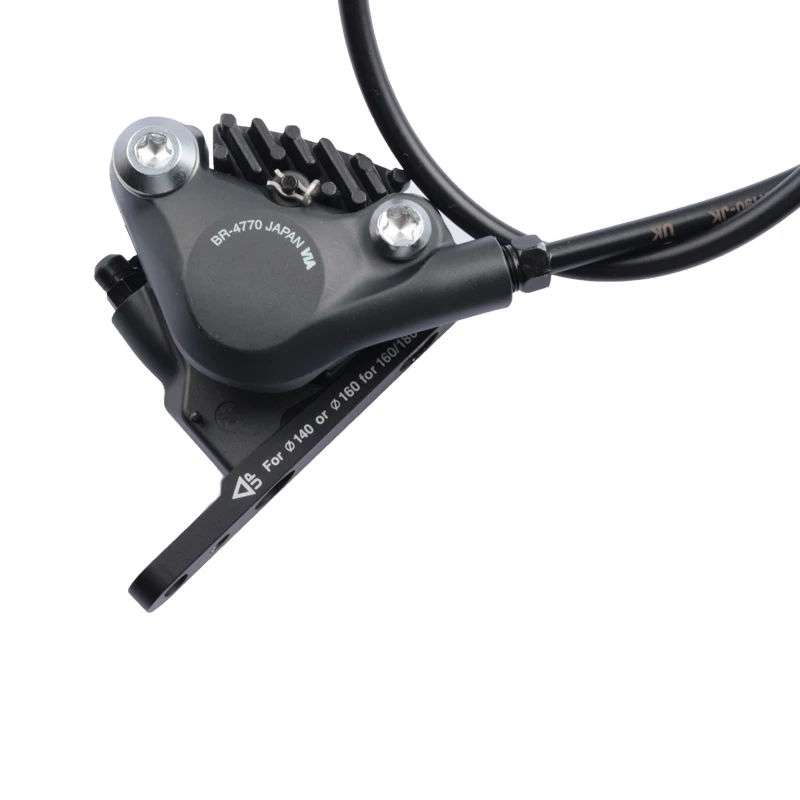

MODEL NO: BR-4770
SERIES: SHIMANO TIAGRA 4700 Series
Color: Series color
Brake type: Hydraulic disc brake

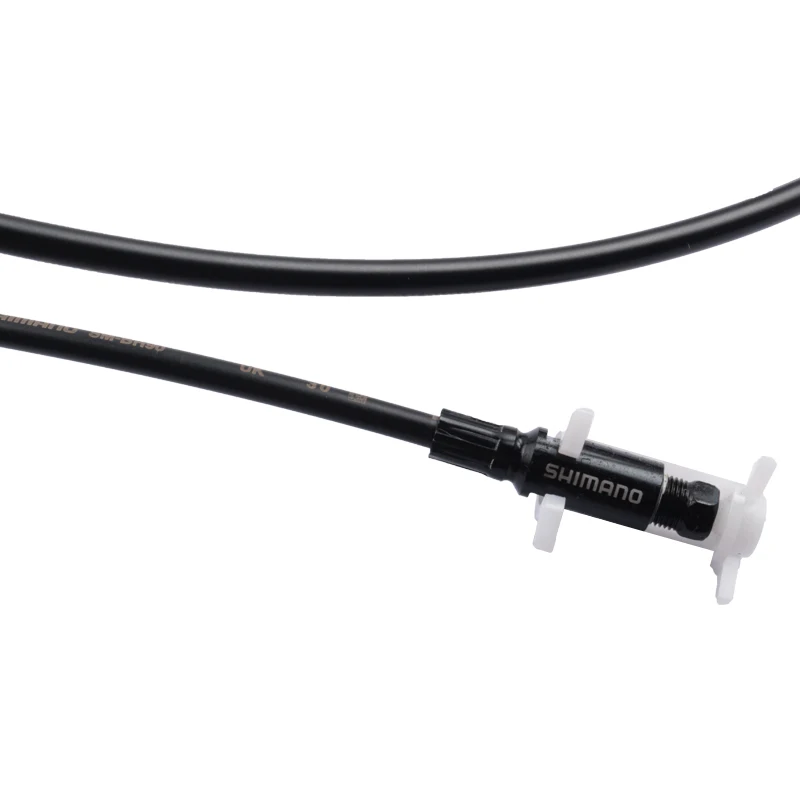

Brake hose (Kit): SM-BH90-JK-SSR
Hose joint: Straight
Brake hose color (kit)|1: Black
J-Kit spec (for OEM): ✔

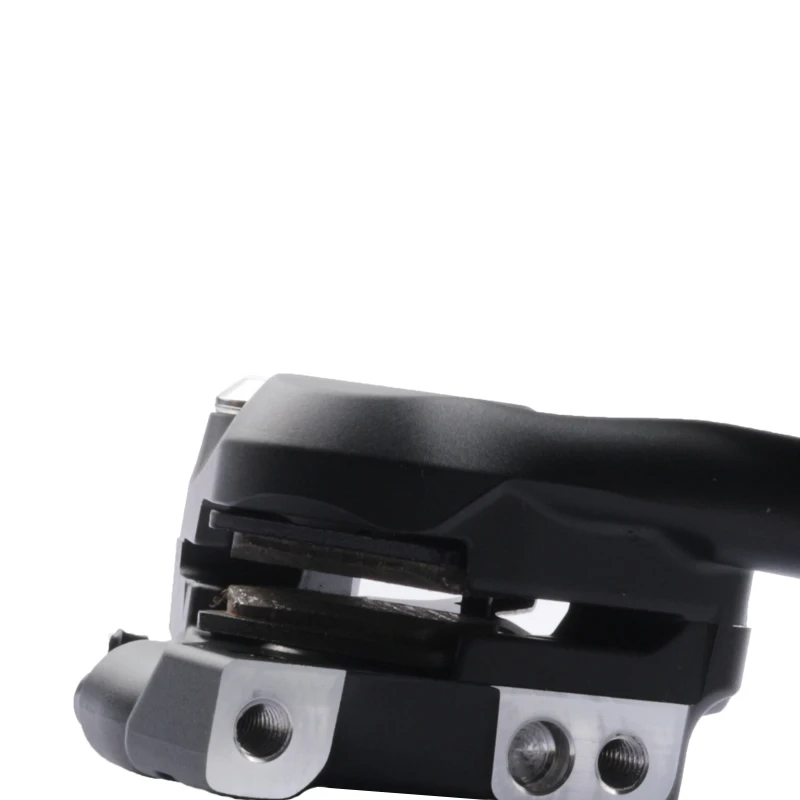

Pad|Standard 1: K05S-RX Resin (w/o fin)
Pad|Standard 2: K04S-MX Metal (w/o fin)
Pad|Option 1: L03A-RF Resin (w/ fin)
Recommended brake lever: ST-4720 ST-4725
Recommended disc brake rotor: SM-RT64
Oil: SHIMANO Mineral
ONE WAY BLEEDING: ✔
Mount type: Flat mount
Piston: 2
Caliper fixing bolt|Tool size: 4 mm
Caliper fixing bolt|Anti loosen method: Screw fixing pin, snap ring
Pad mount: Pad axle
