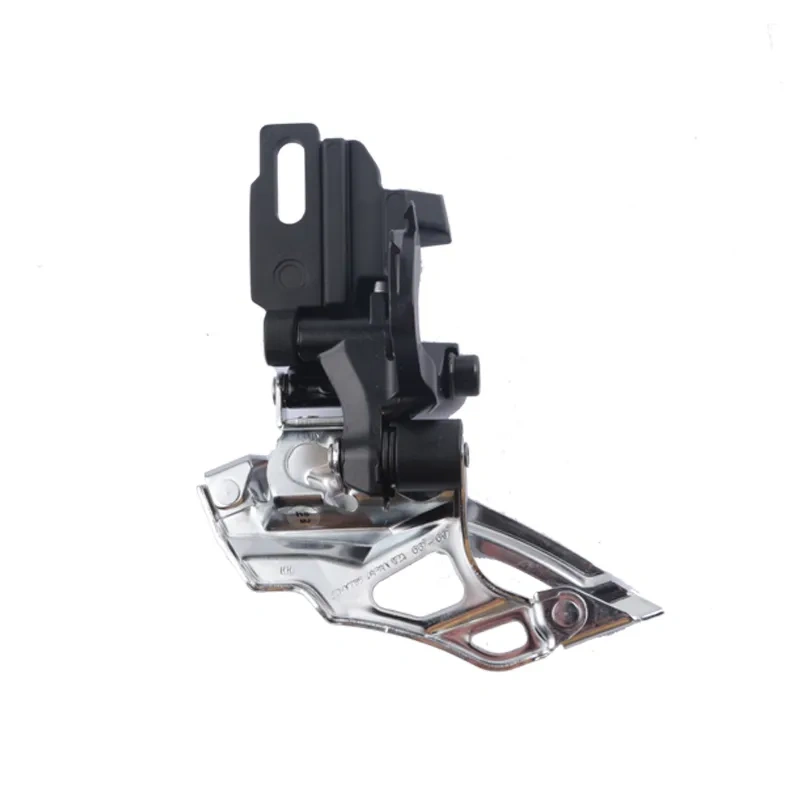

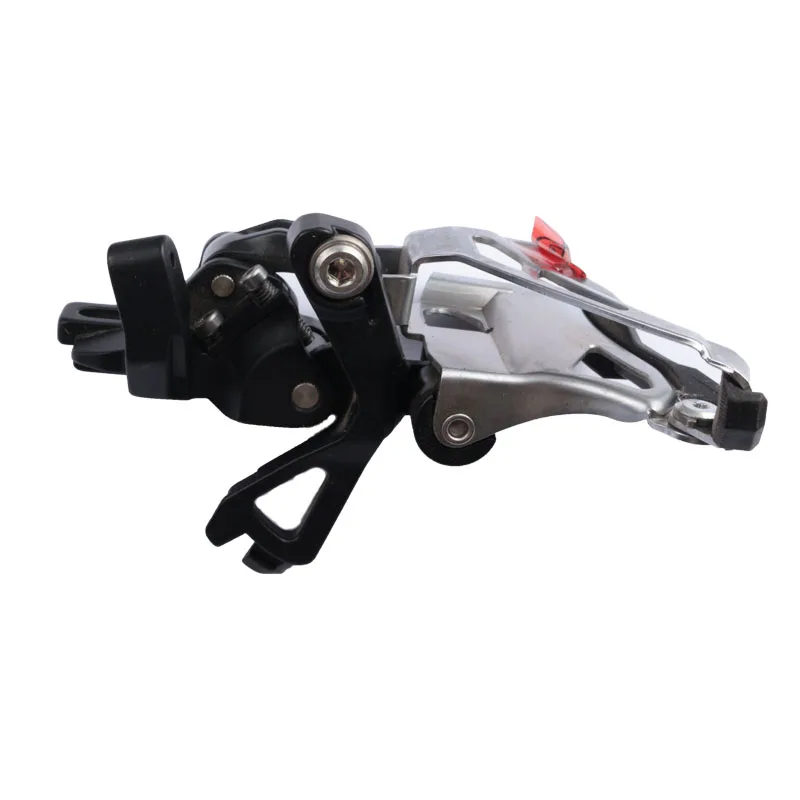

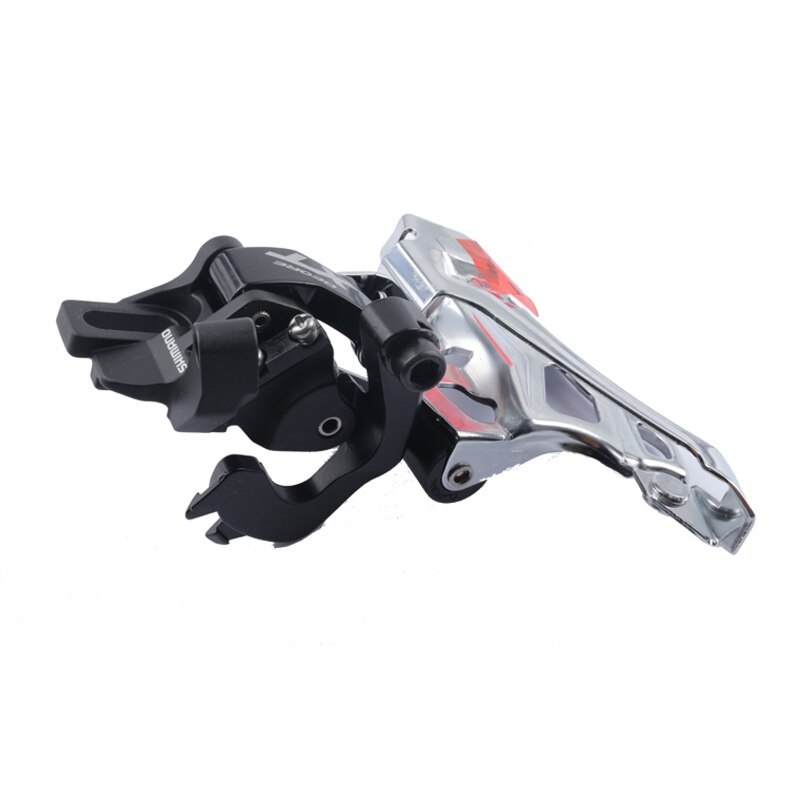

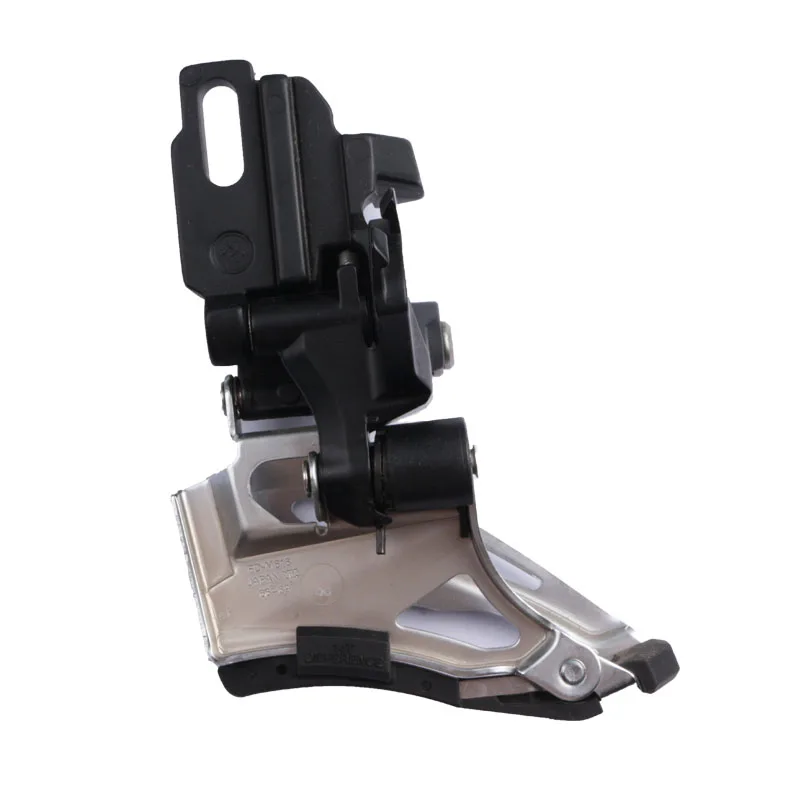

Shimano Deore M610 FD-M618-D XT FD-M786-D Front Derailleur 2x10s For MTB Mountain Bicycle Brazed On Bike Derailleurs 2x10 Speed

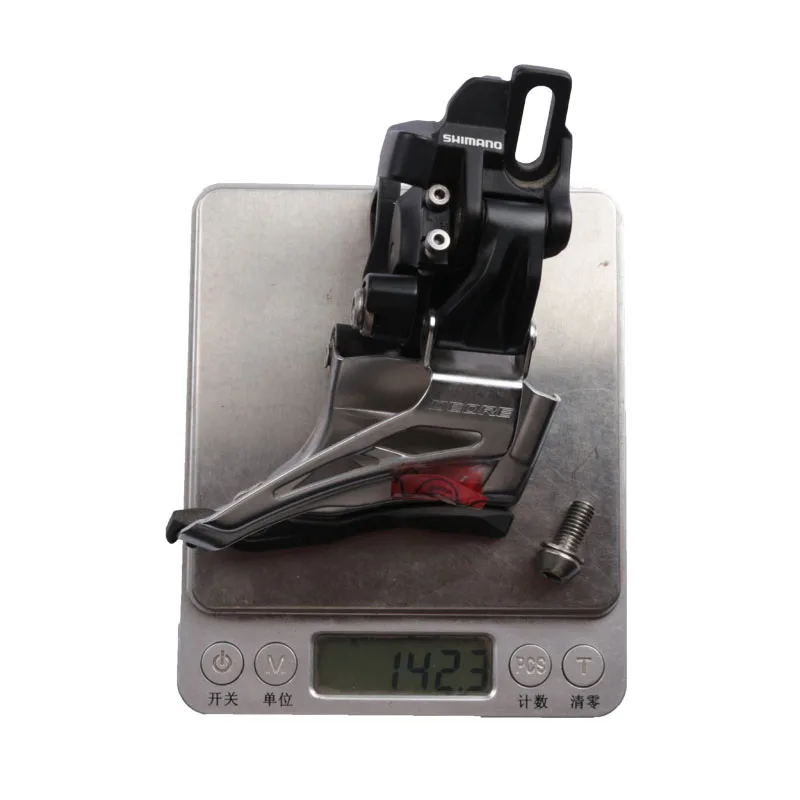

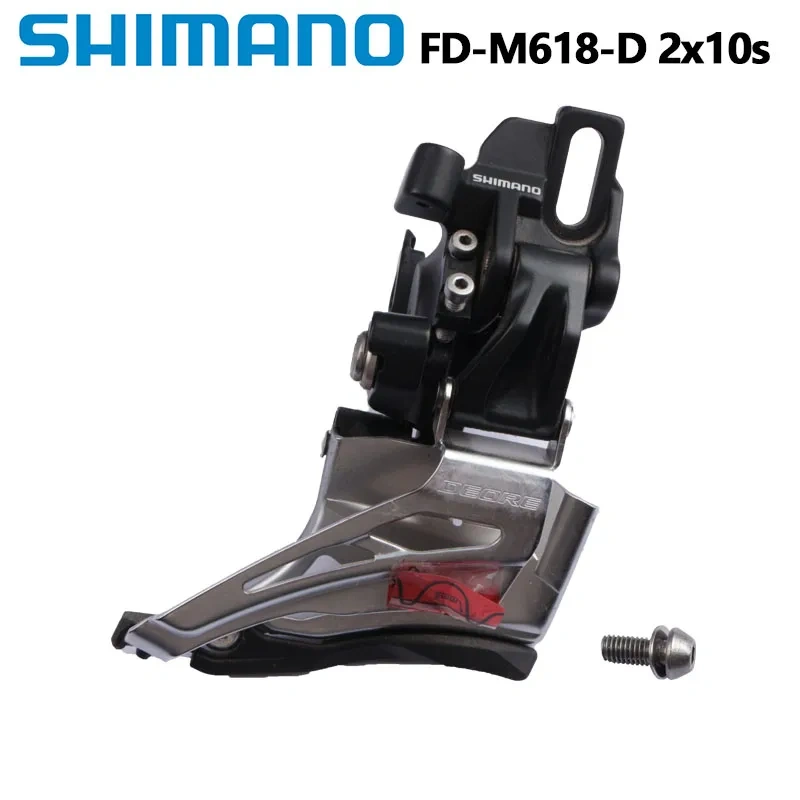

Model: FD-M618-D
Series: DEORE M610 series
Color: black
Remarks: It is compatible with the special crank whose center line of the chain deviates by 3mm.
Operation_ Bottom hem: ✔
Angled stroke adjust screw: ✔
Routing type_ Double pull: ✔
Routing type_ Pull up only: ✔
Chain center line (mm): 48.8*
Rear lower fork angle (degrees): 66-69
Compatible chain: HG-X 10 speed
Link bushing: 8

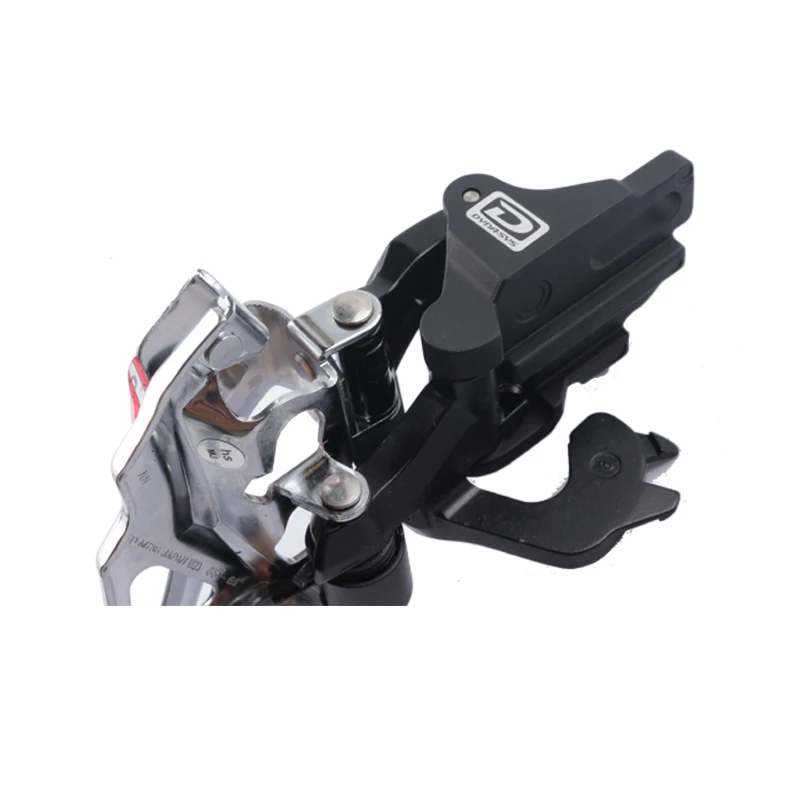

Mount_ Direct mount: ✔
Maximum number of sprocket teeth: 36-38T
Total value of gear change range: 14T

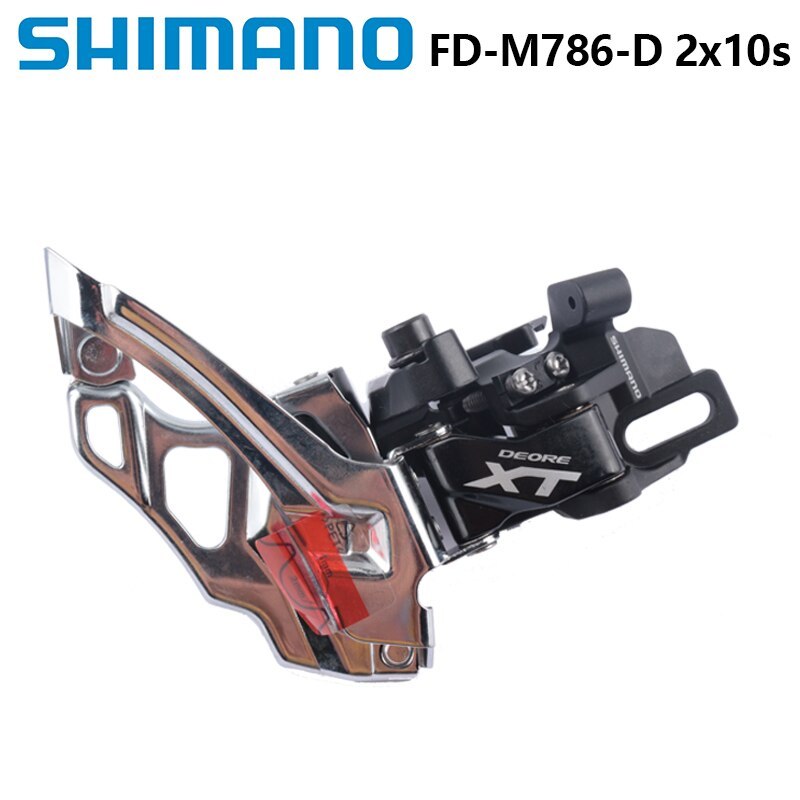

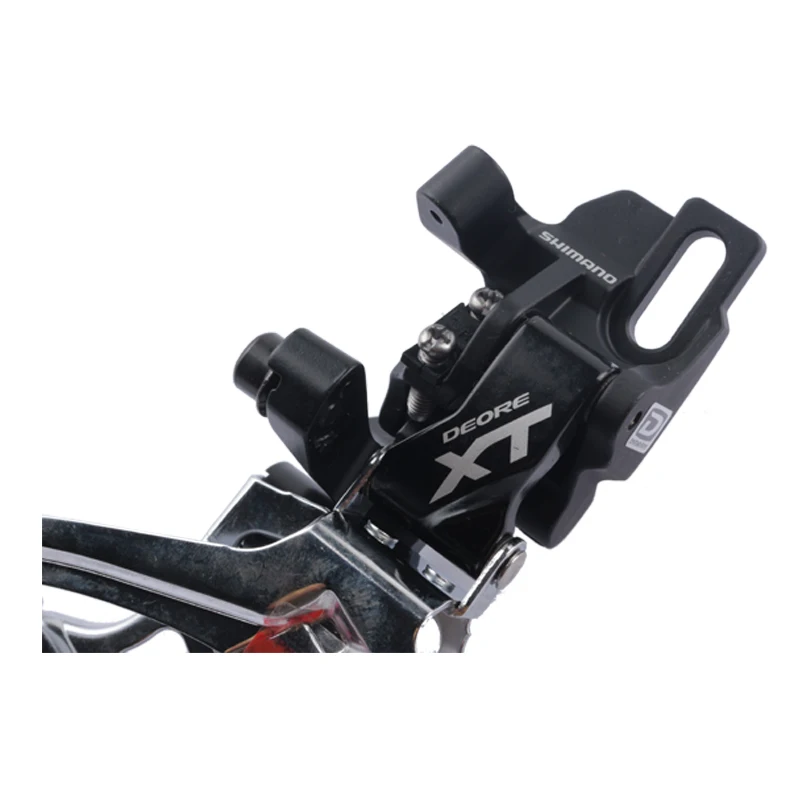

FD-M786-D
Model: FD-M786-D

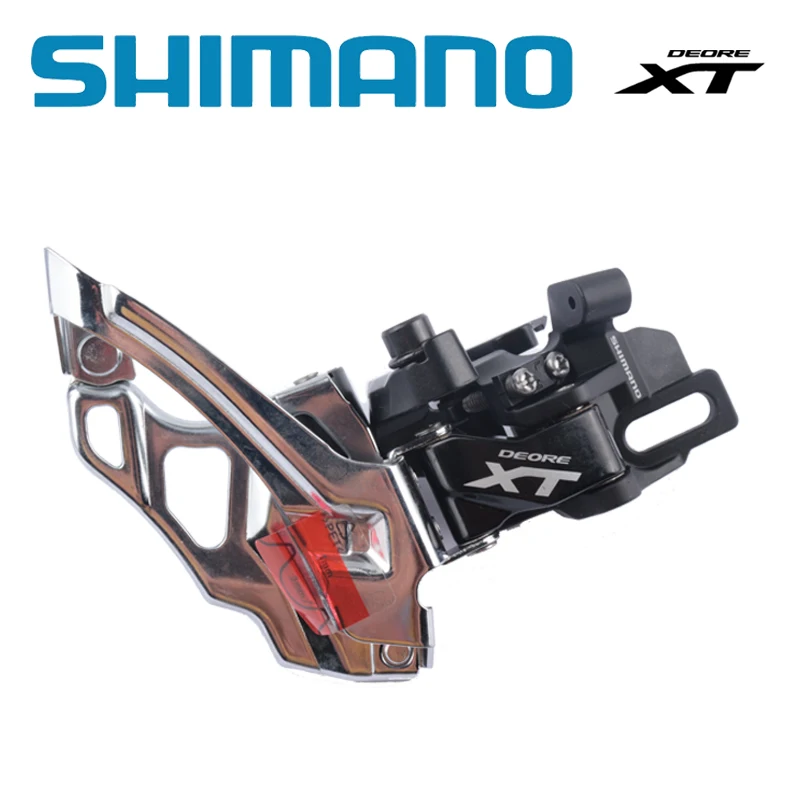

Series: DEORE XT M780 series
Colour: Black

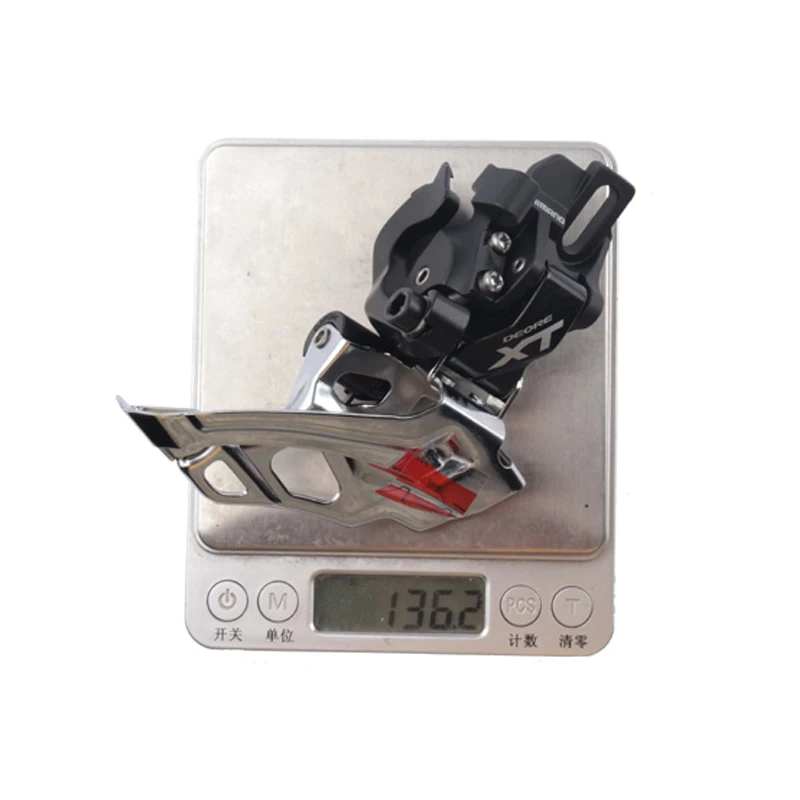

Average weight: 146
Operation_Swing style: ✔
Angle stroke adjustment screw: ✔
Wiring type_Double pull: ✔
Wiring type_Pull up only: ✔
Chain center line (mm): 48.8
Chainstay angle (degrees): 66-69
Compatible chain: HG-X 10 speed
Link bushing: 8
Installation method_Direct installation: ✔
Stage speed_front: 2
Stage speed_after: 10
Maximum number of sprocket teeth: 38-44T
Total value of gear changing range: 14T
Front gear: 2
Rear gear: 10
