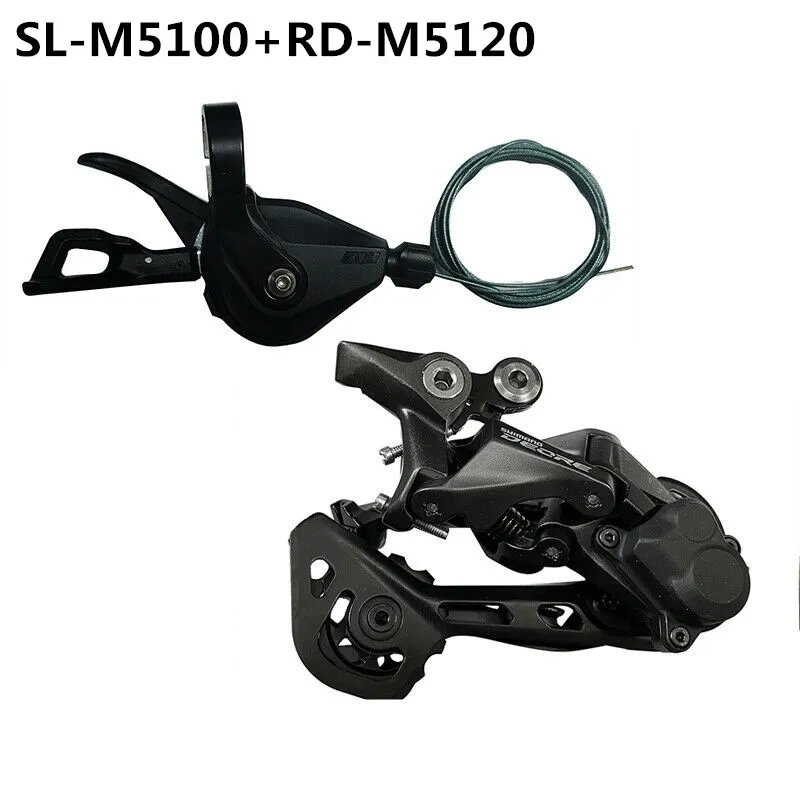

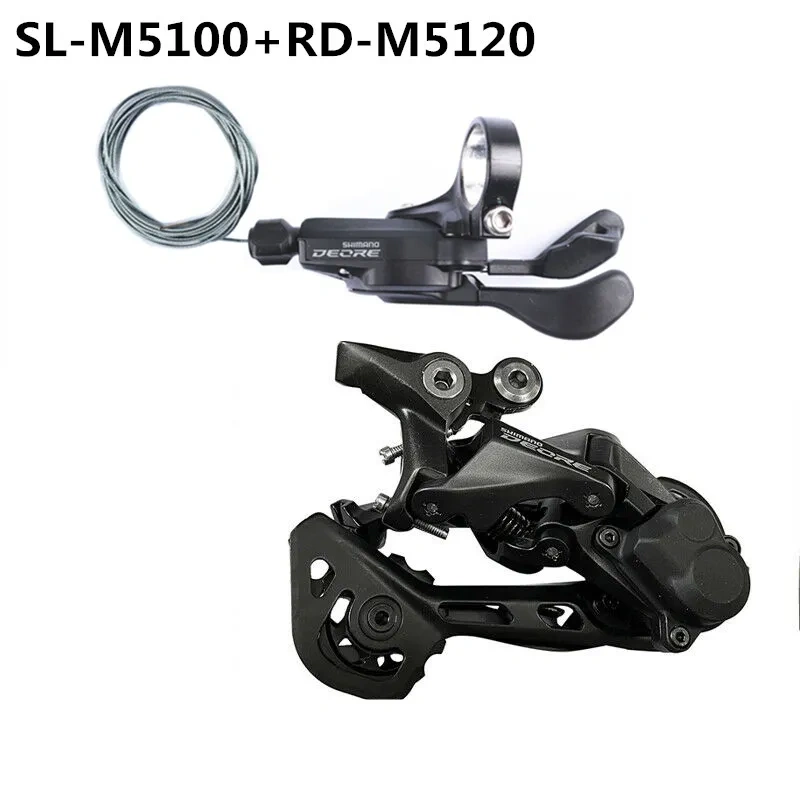

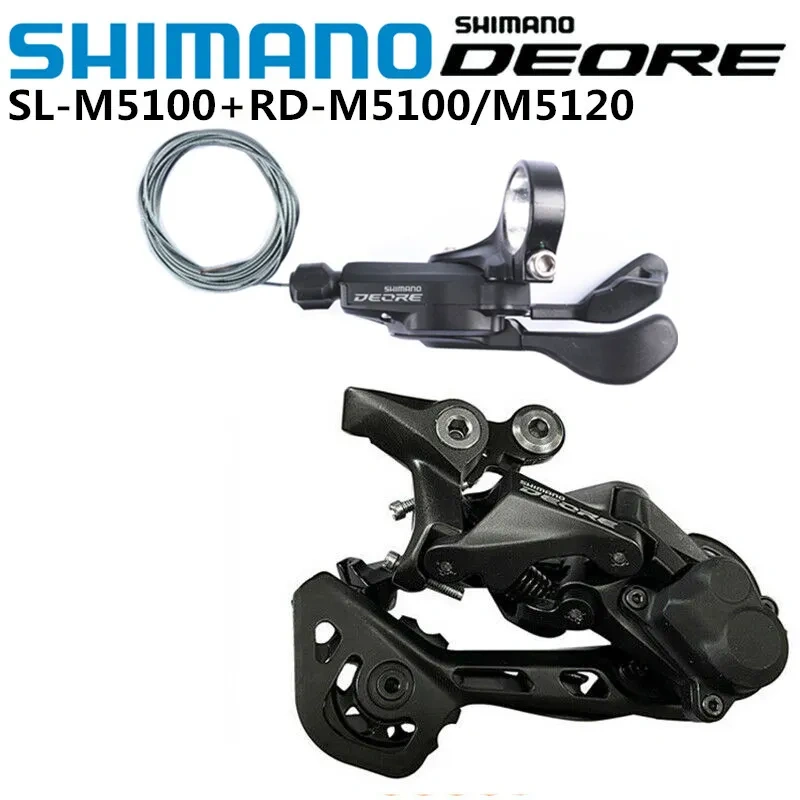

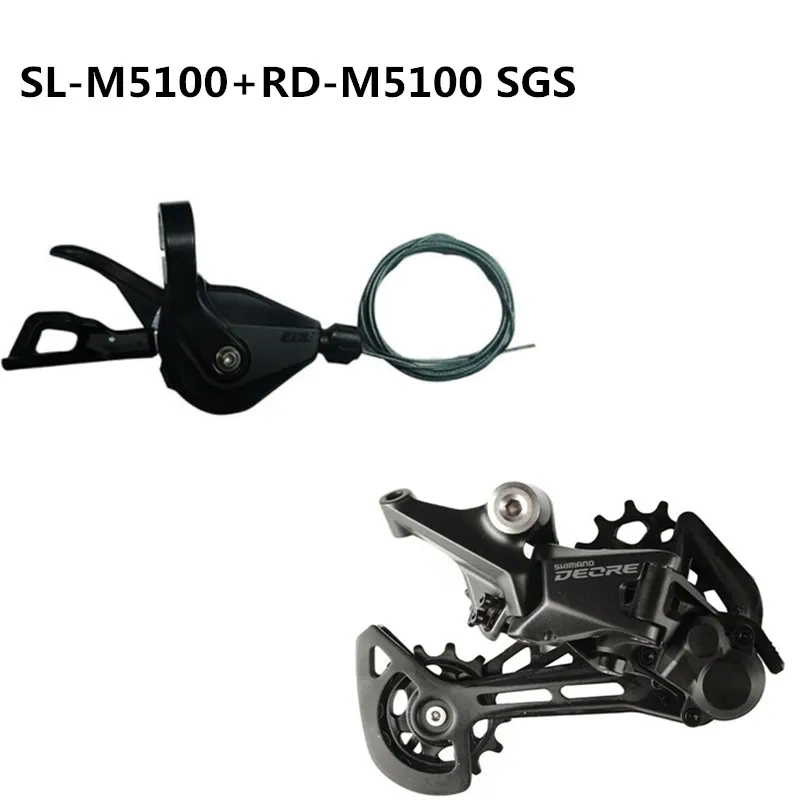

SL-M5100+RD-M5100/RD-M5120

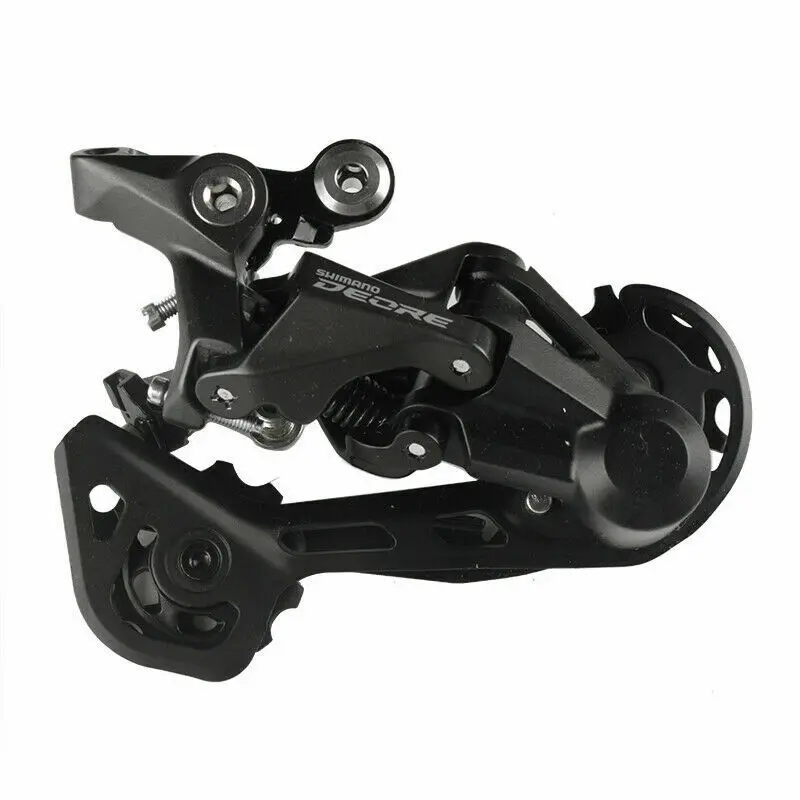

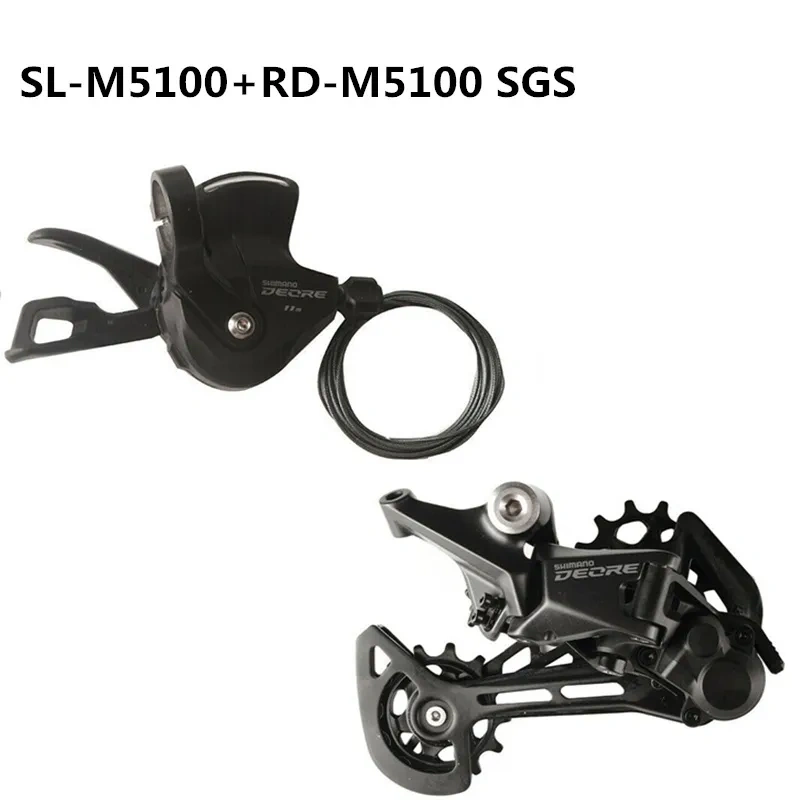

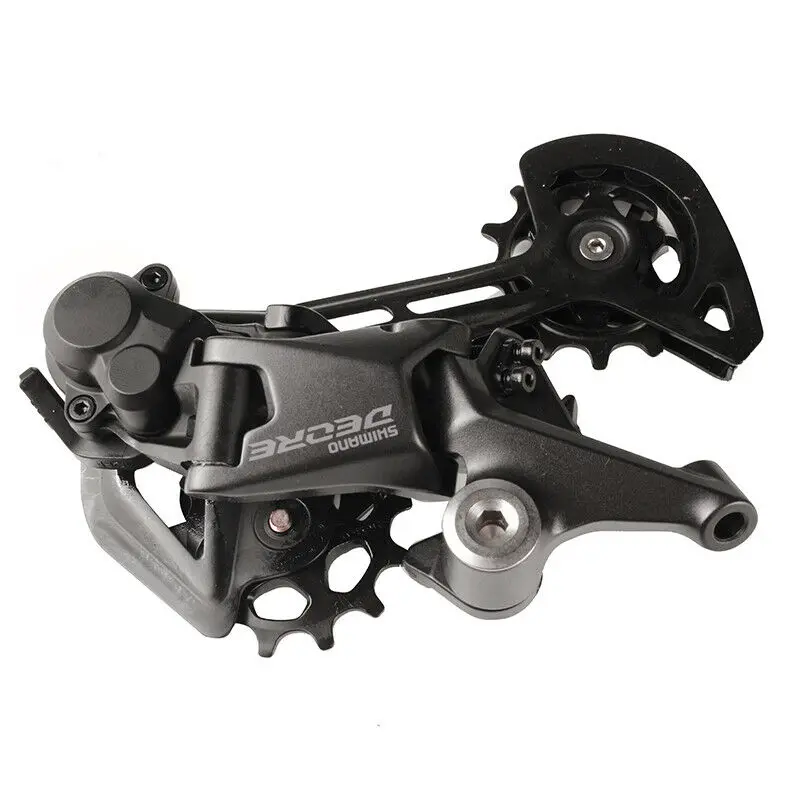

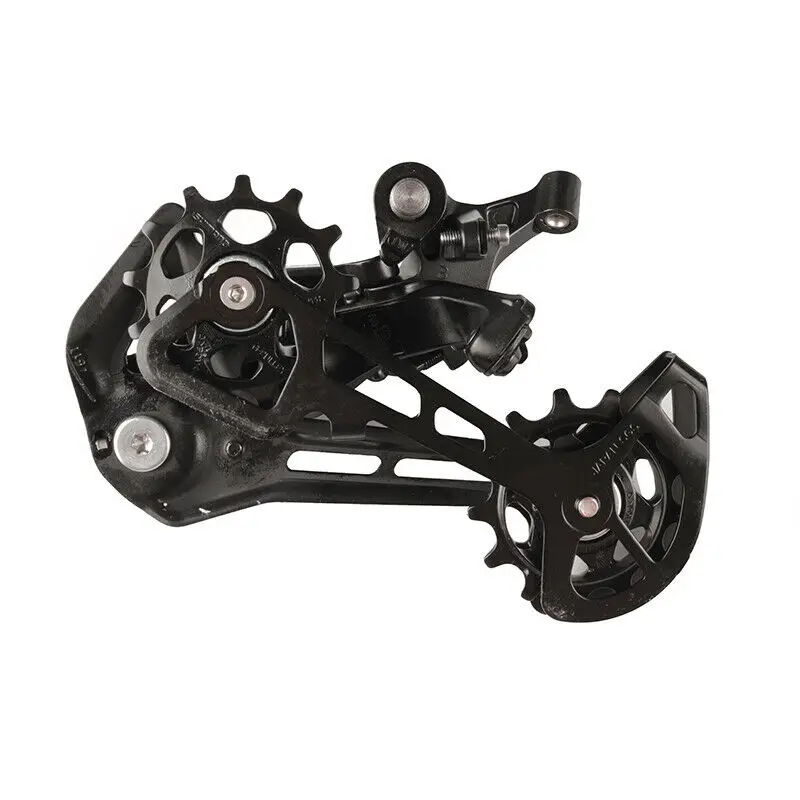

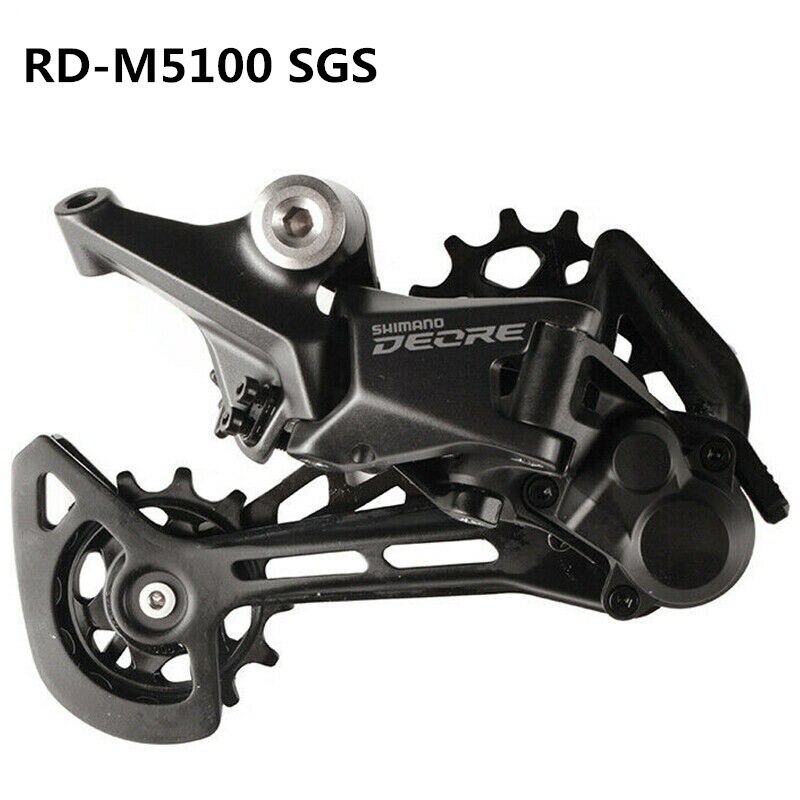

M5100 SGS
Description:
Brand:shimano
Model:M5100
Size:SGS Long cage
Speed:11 speed
Low flywheel_ Maximum teeth: 51T

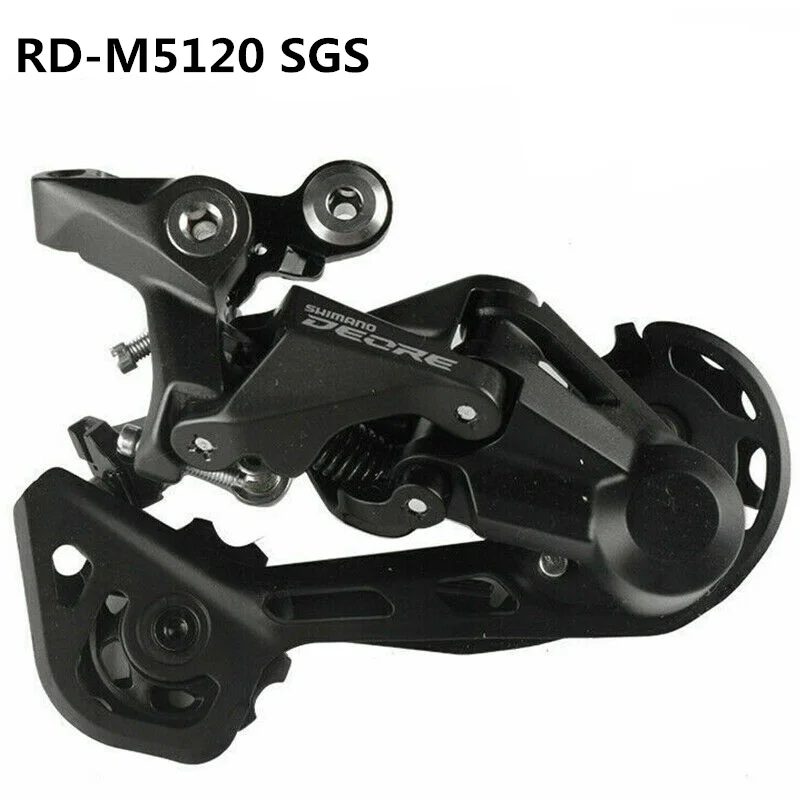

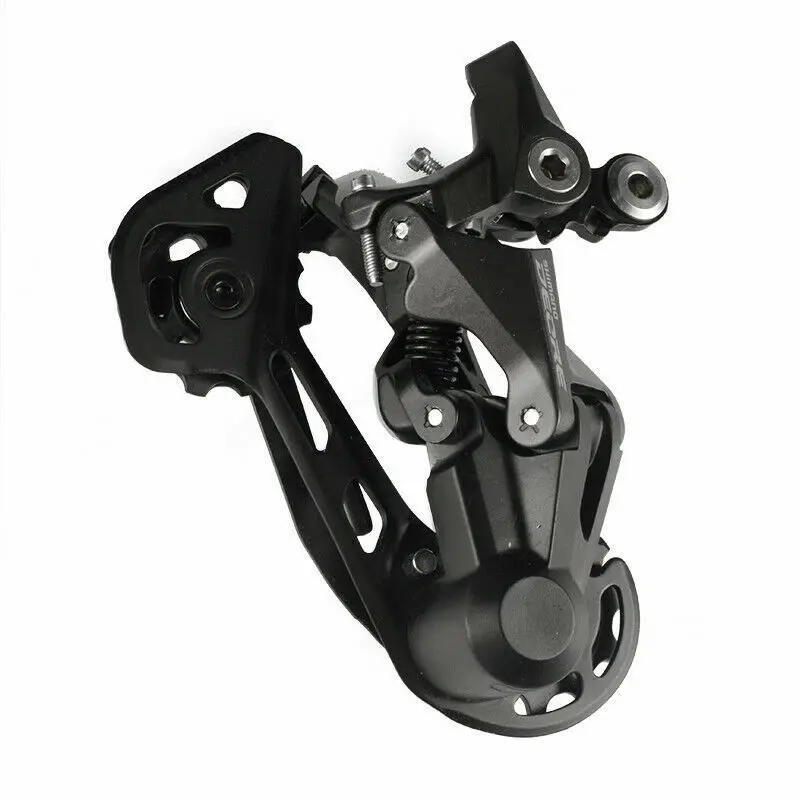

M5120 SGS
Description:
Brand:Shimano
Model:M5120
Size:SGS long cage
Speed:11 Speed
Low flywheel_ Maximum teeth: 46t (1x10 speed), 42t (2x11 / 2x10 speed)
Series:DEORE M5100
Speed:11 speed
Type: RAPIDFIRE PLUS-Right Shift Lever - Clamp Band
Quicker lever access and light operation
Shifts max. 3 gears at a time (Main lever)
Clean and action-optimized cockpit
OPTICAL GEAR DISPLAY for easy visible gear position

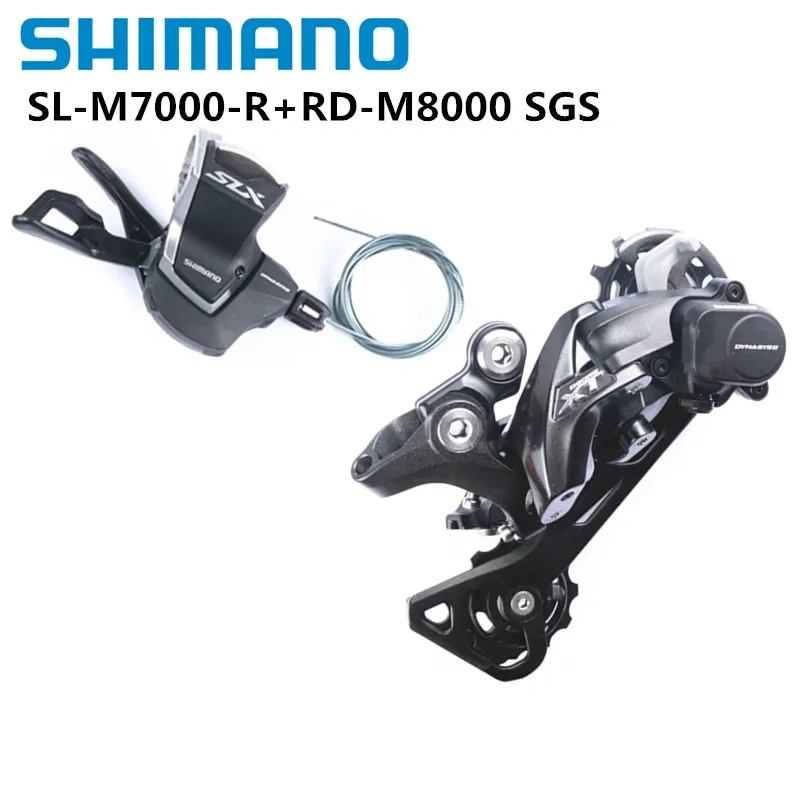

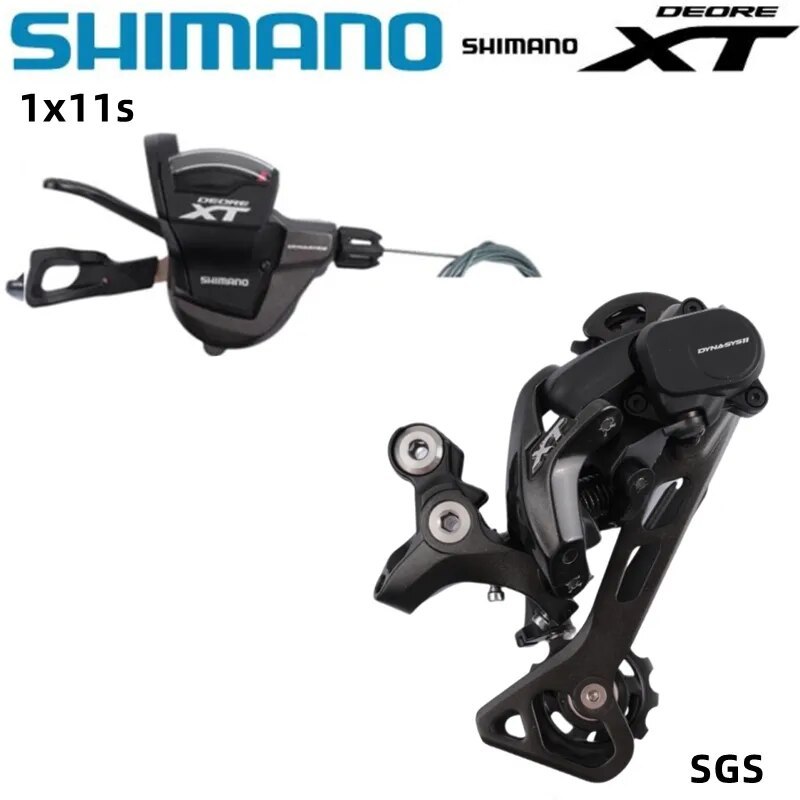

SL-M7000/M8000+RD-M8000 GS/SGS
Model: SL-M7000-11-R
Series: SLX M7000 Series
Color: series color
Average weight: 135g
Stand Type: Clamp Ring✔
Shift handle cable inner cable: stainless steel
Compatible rear derailleur type: MTB 11 speed
Max multi-shift: 3
Rear derailleur: 11
Recommended shift lever outer casing: OT-SP41
Release function: 2-WAY RELEASE
Shift handle cable: adjustable
Shift lever type: RAPIDFIRE PLUS
Shift lever cable: inner cable_OPTISLICK
Compatible with I-SPEC EV brake levers: ✔

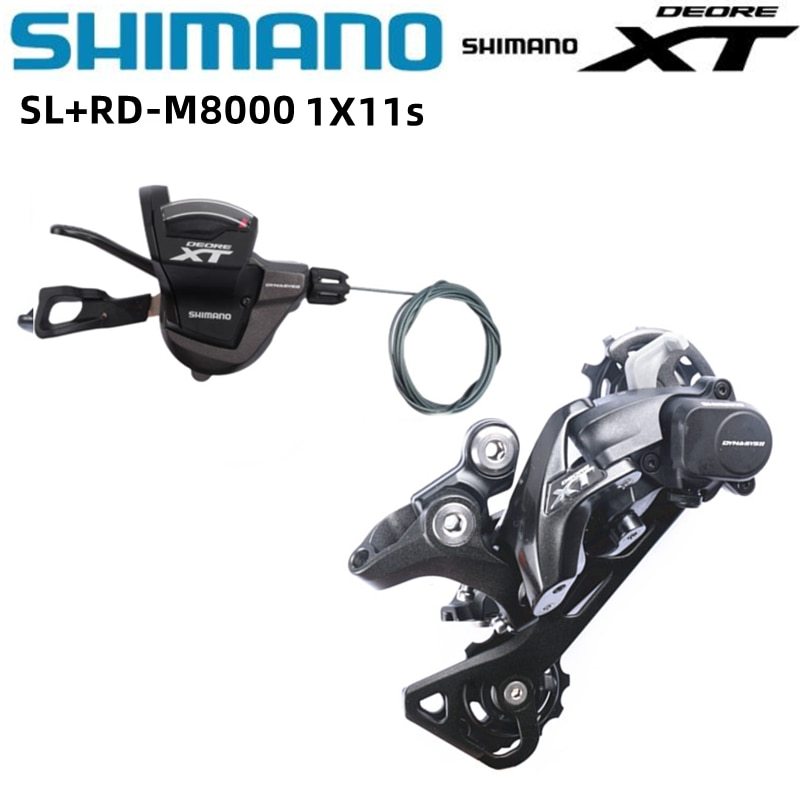

Model: SL-M8000-R
Series: DEORE XT M8000 Series
Color: series color
Average weight: 127g
Pull: Monolithic
Push: Two-piece
Stand Type: Clamp Ring
Shift handle cable inner cable: stainless steel
Compatible rear derailleur type: MTB 11-speed
Maximum multi-shift (main handle/rear): 4
Rear Shift: 11
Recommended shift lever outer casing: OT-SP41
Shift lever cable adjustment: ✔
Shift lever type: RAPIDFIRE PLUS
Shift lever cable inner cable: OPTISLICK
Compatible with I-SPEC EV brake levers: ✔

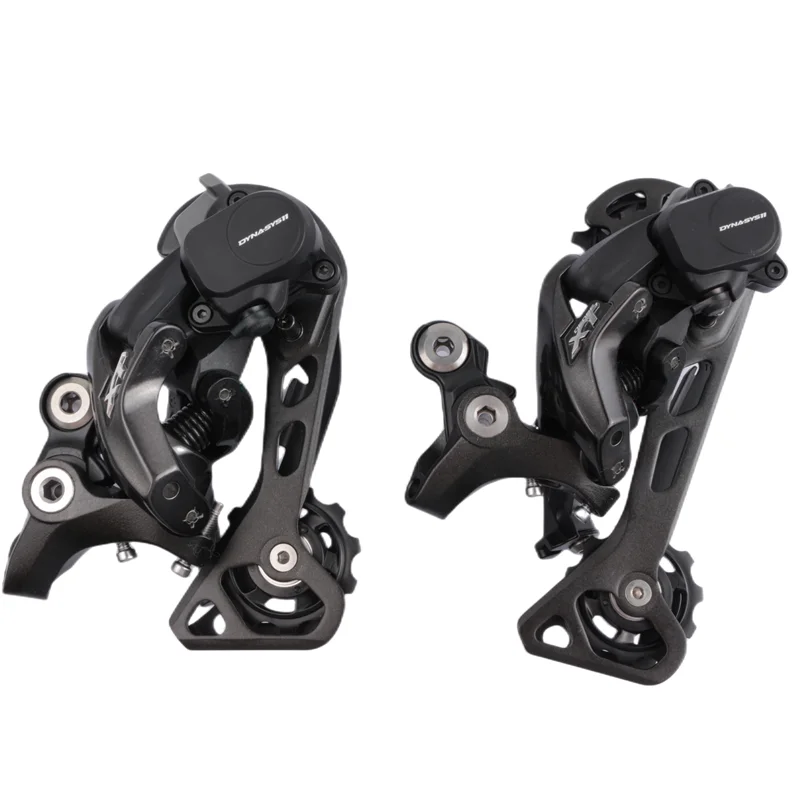

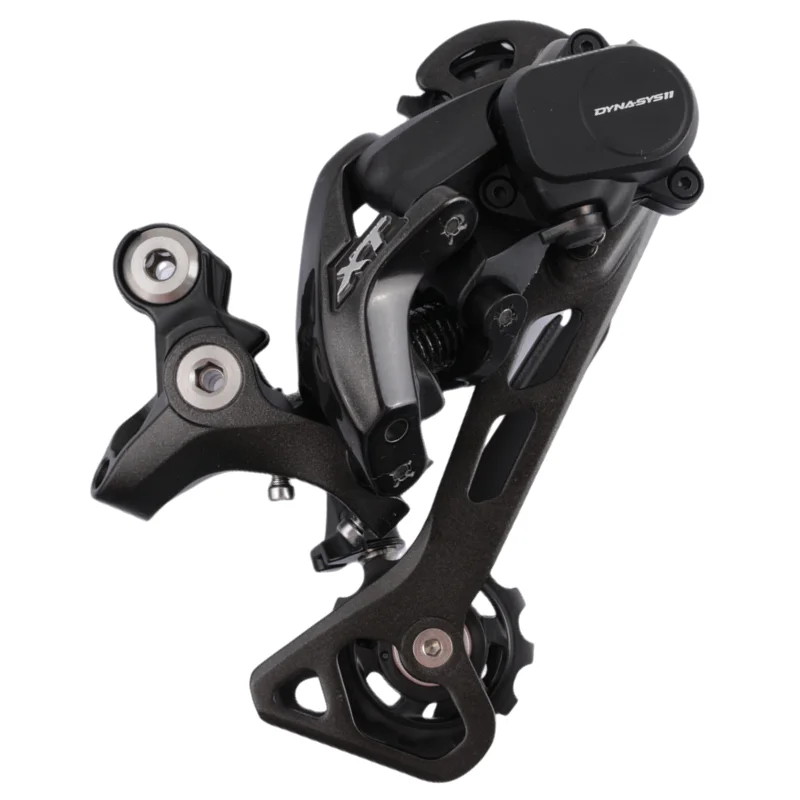

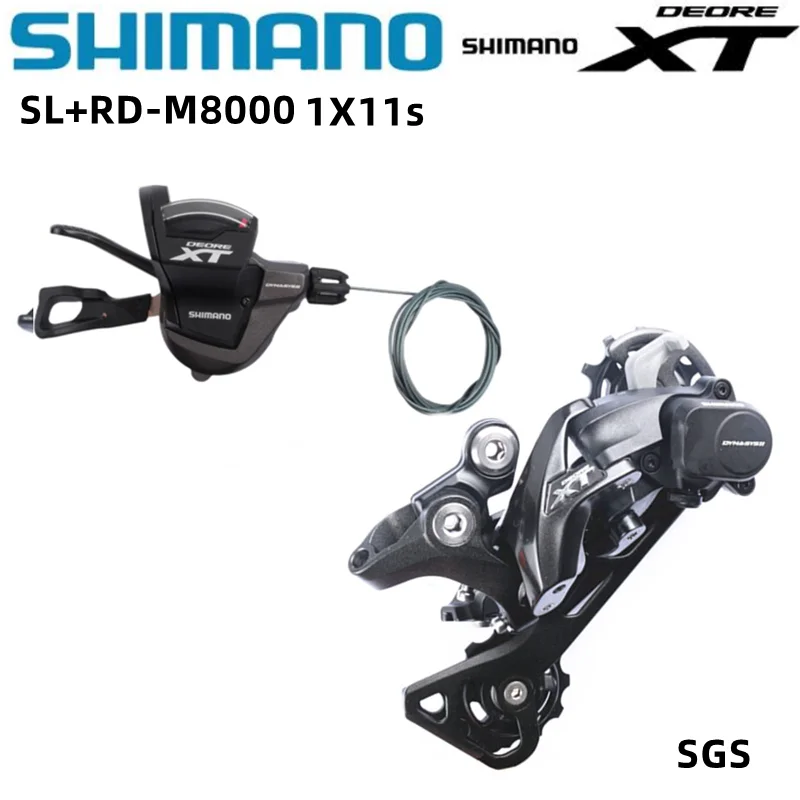

Model: RD-M8000-SGS
Series: DEORE XT M8000 Series
Average weight: 275g
Compatible chains: LINKGLIDE, HG 11-speed
Total value of tooth change range: 47T
B shaft: hollow shaft
Base: Direct Attach (Traditional)
Link bushings with fluorine coating: 4
Low sprocket_max teeth: 40T (3x11 speed), 42T (2x11 speed), 46T (1x11 speed)
Low sprocket _ minimum tooth: 40T
The difference between the maximum and minimum chainring teeth: 18T
Guide wheel_guide wheel bearing: sealed bearing
Idler_Recessed Idler Screw:✔
Guide wheel_tooth combination: 11T
Guide pulley_tension pulley bearing: sealed bearing
Guide: SGS
High standard spring type: SHIMANO SHADOW RD+ (hidden rear derailleur)
High-position sprocket_Maximum tooth: 11T
High-position sprocket_minimum tooth: 11T
Rear derailleur: 11

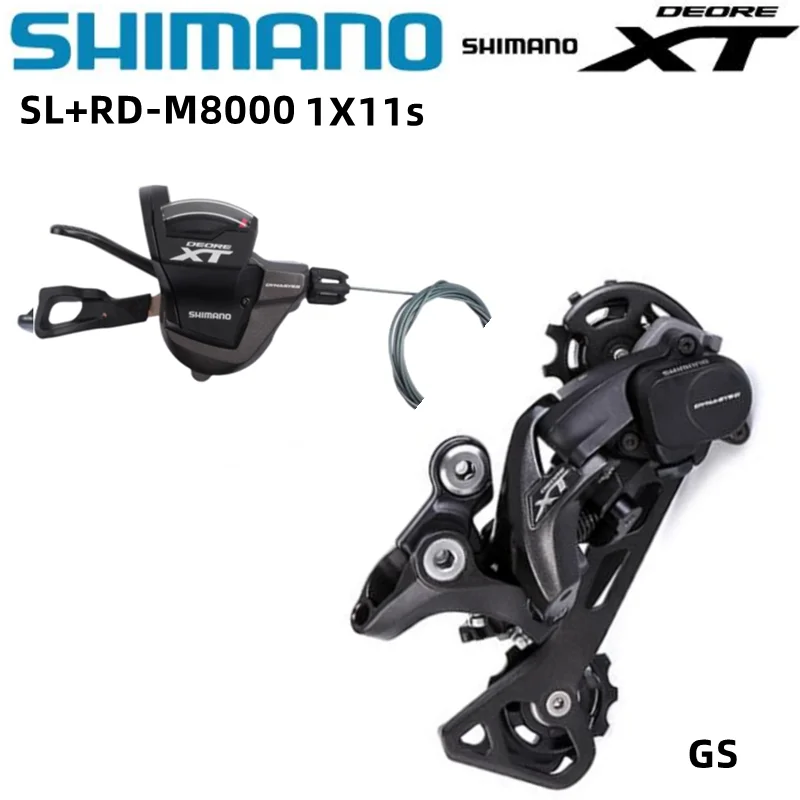

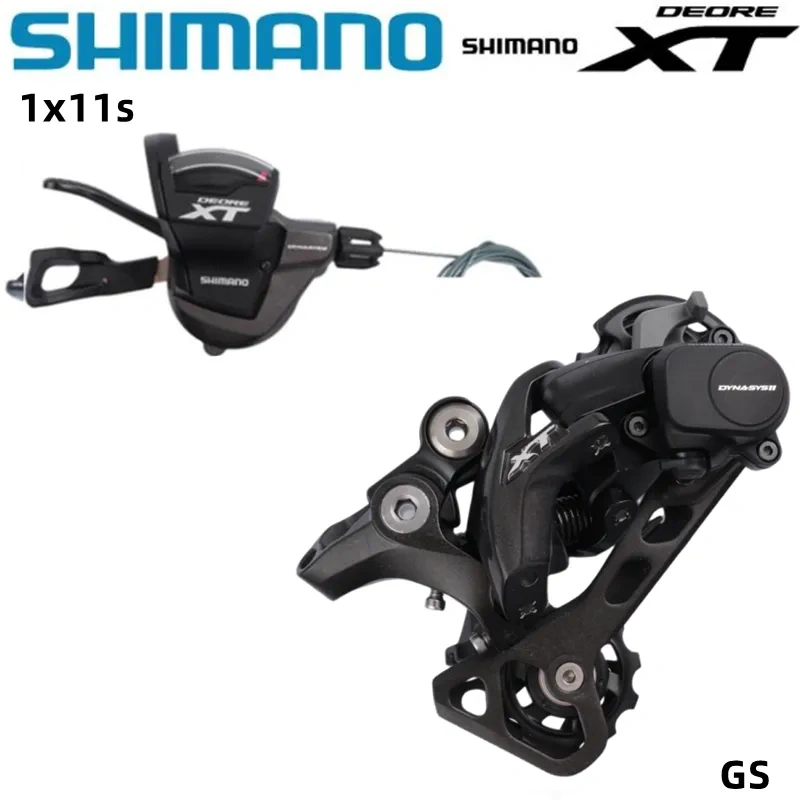

Model: RD-M8000-GS
Series: DEORE XT M8000 Series
Color: series color
Average weight: 271g
Compatible chains: LINKGLIDE, HG 11-speed
Total value of tooth change range: 39T
B shaft: hollow shaft
Base: Direct Attach (Traditional)
Link bushings with fluorine coating: 4
Low sprocket_max teeth: 42T (2x11 speed), 46T (1x11 speed)
Low sprocket_minimum tooth; 40T
The difference between the maximum and minimum chainring teeth; 10T
Guide wheel_guide wheel bearing: sealed bearing
Idler_Recessed Idler Screw:✔
Guide wheel_tooth combination: 11T
Guide pulley_tension pulley bearing: sealed bearing
Guide plate: GS
High standard spring type: SHIMANO SHADOW RD+ (hidden rear derailleur)
High-position sprocket_Maximum tooth: 11T
High-position sprocket_minimum tooth: 11T
Rear derailleur: 11
