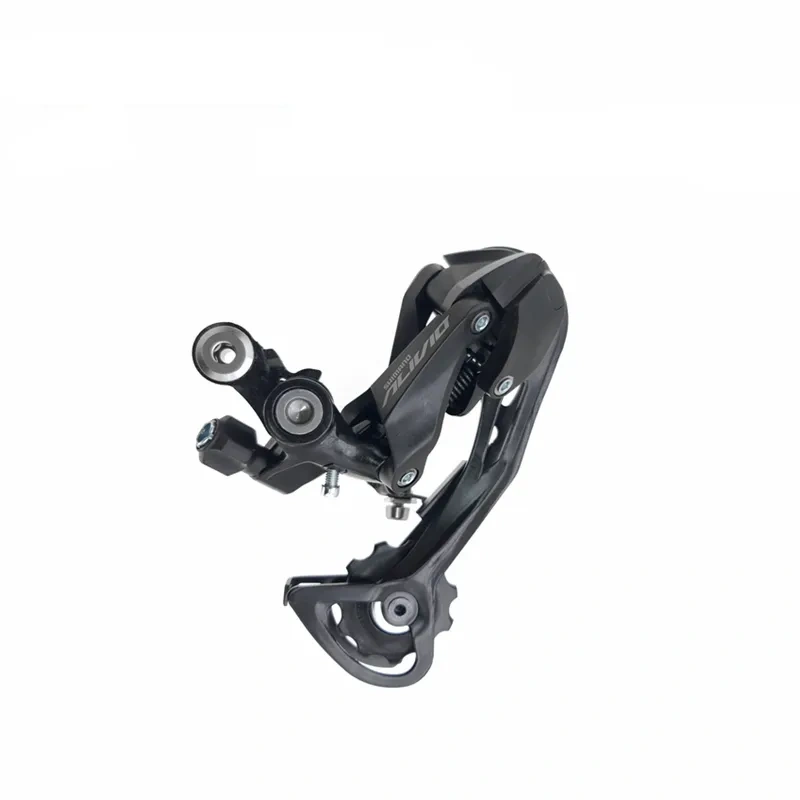

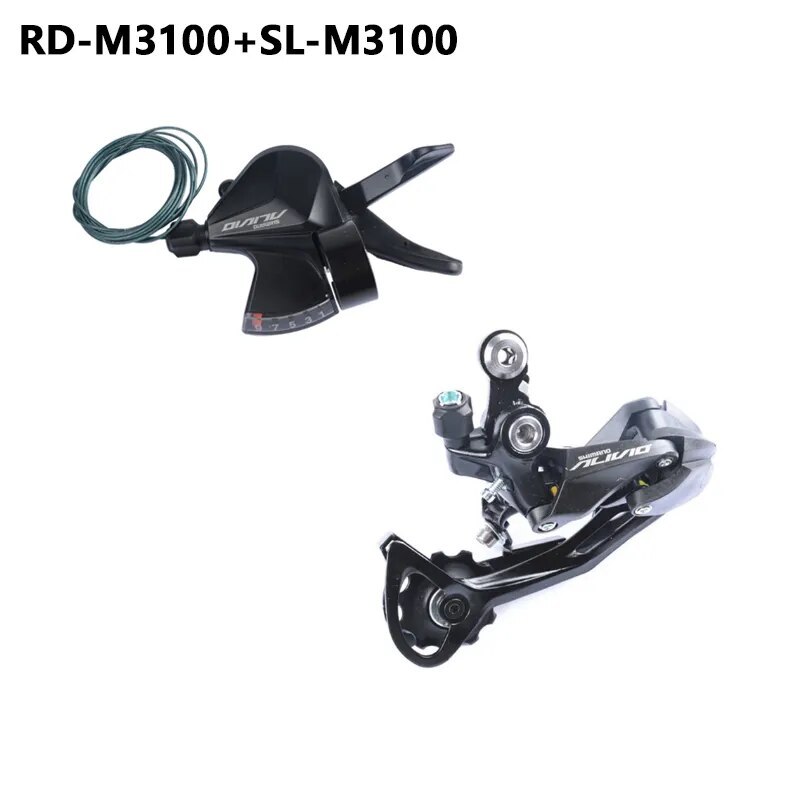

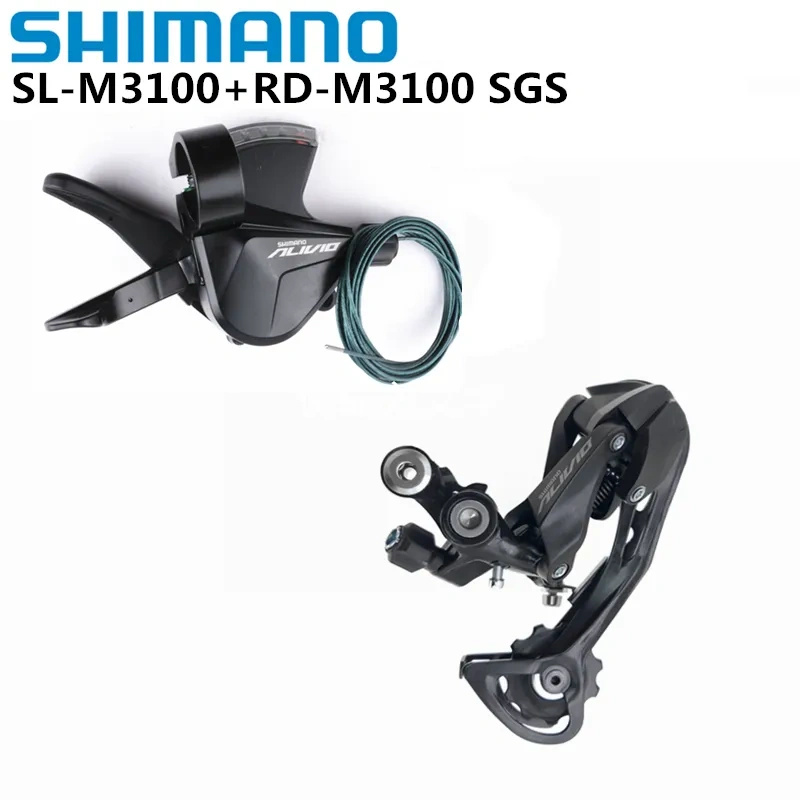

RD-M3100-SGS
SERIES：SHIMANO ALIVIO M3100 Series
Color：Series color
B-Axle_Hollow axle:✔
Cable adjuster:✔
Compatible chain:CN-HG53 9-speed
Direct attachment (Conventional):✔
Fluoric coated link bushings:1
Low sprocket_Max.:36T
Low sprocket_Min.:32T
Max. front difference:22T
Pulley_Sunken type pulley bolt:✔
Pulley_Teeth:11T
Pulley cage:SGS
Rear speeds:9
Top-Normal spring type_SHADOW RD:✔
Top sprocket_Max.:12T
Top sprocket_Min.:11T
Total capacity:45T

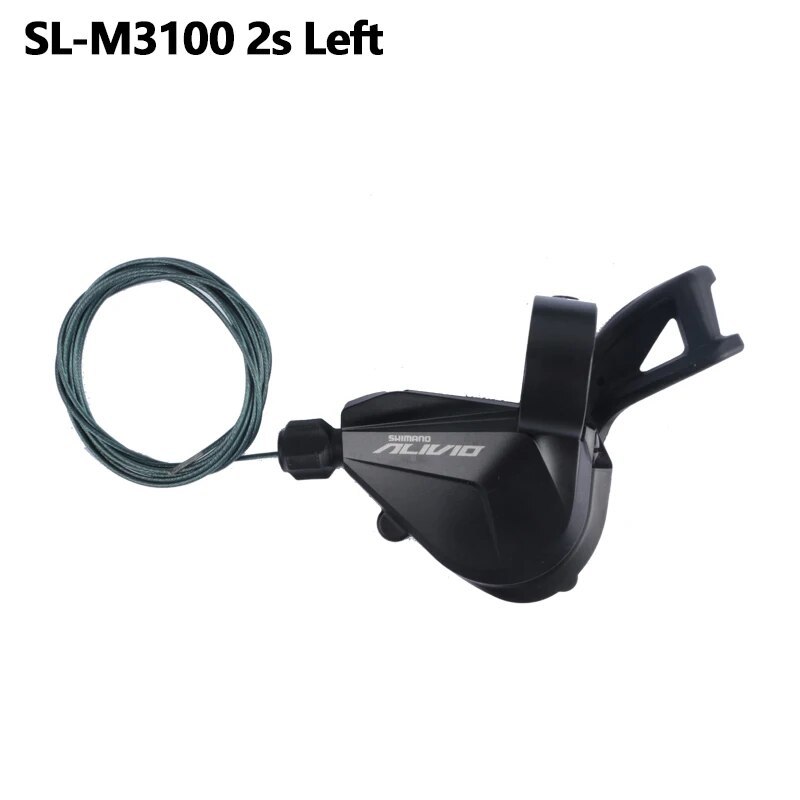

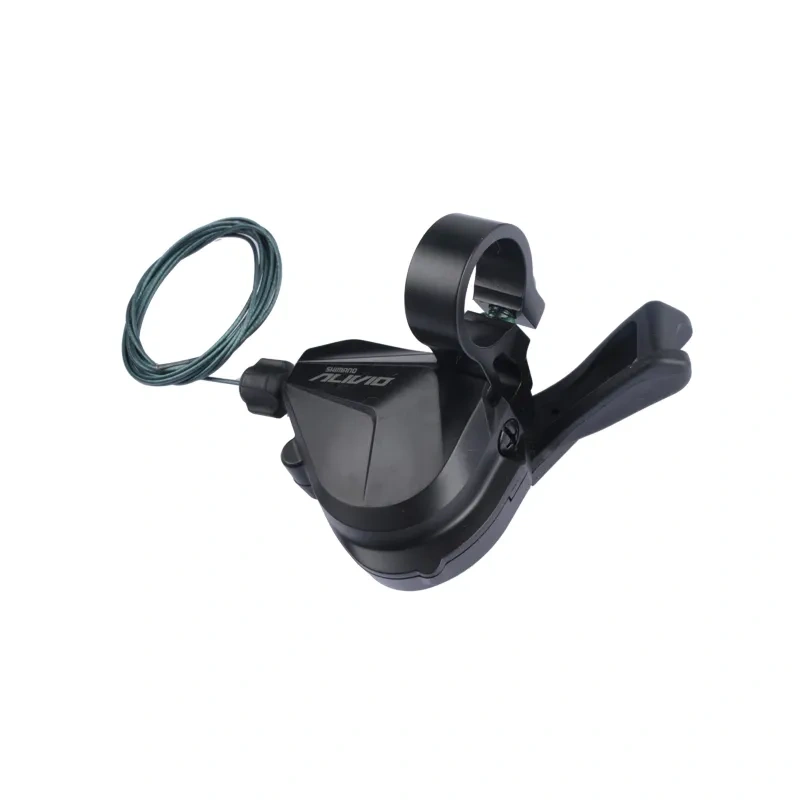

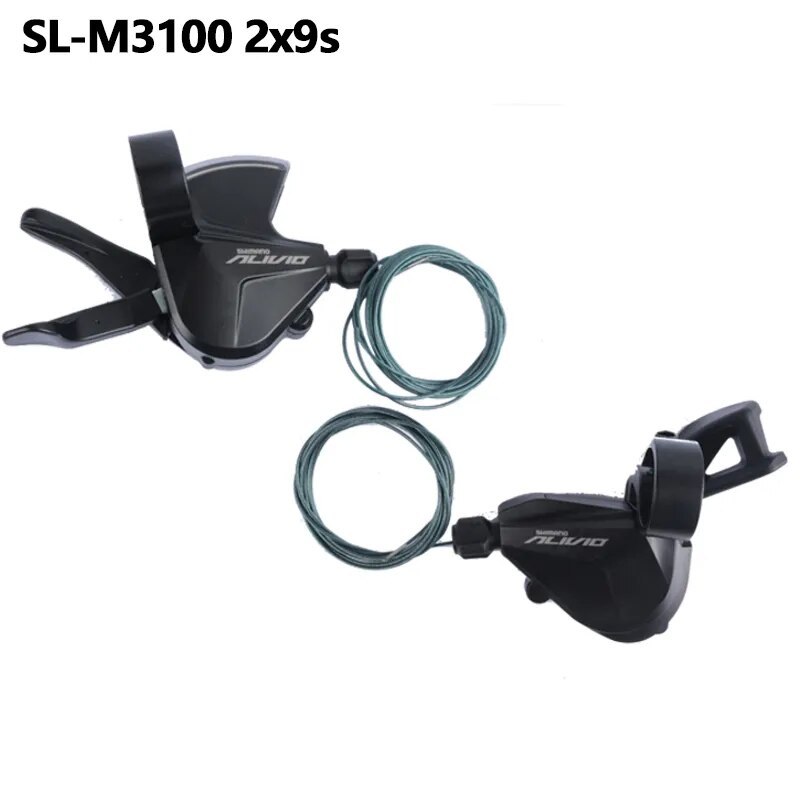

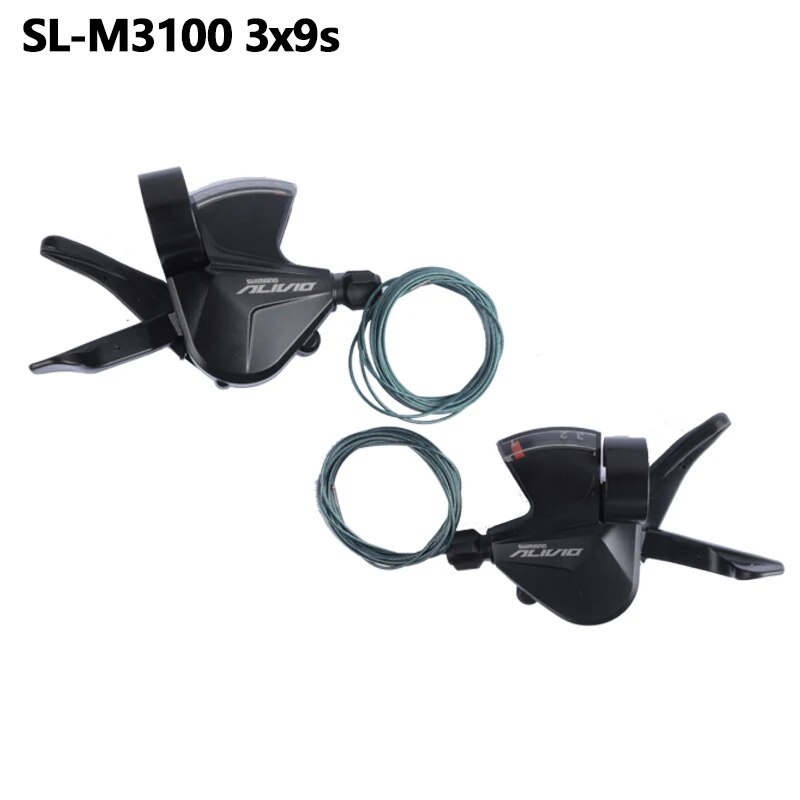

SL-M3100-2L
series SHIMANO ALIVIO M3100 SERIES
color series colors
mount type - clamp ring ✔
variable speed handle pull line , inner line , steel ✔
the front variable speed 2
OPTICAL GEAR DISPLAY_ NOT ✔
suggested variable speed handle coat line tube OT-SP41
RELEASE FEATURE 2-WAY RELEASE ✔
the variable speed handle pulls the cable adjustment ✔
variable speed handle type RAPIDFIRE PLUS MONO (SINGLE HANDLE)
THE VARIABLE SPEED HANDLE PULLS THE LINE , THE INNER LINE _OPTISLICK ✔
COMPATIBLE WITH I-SPEC EV BRAKE HANDLES ✔

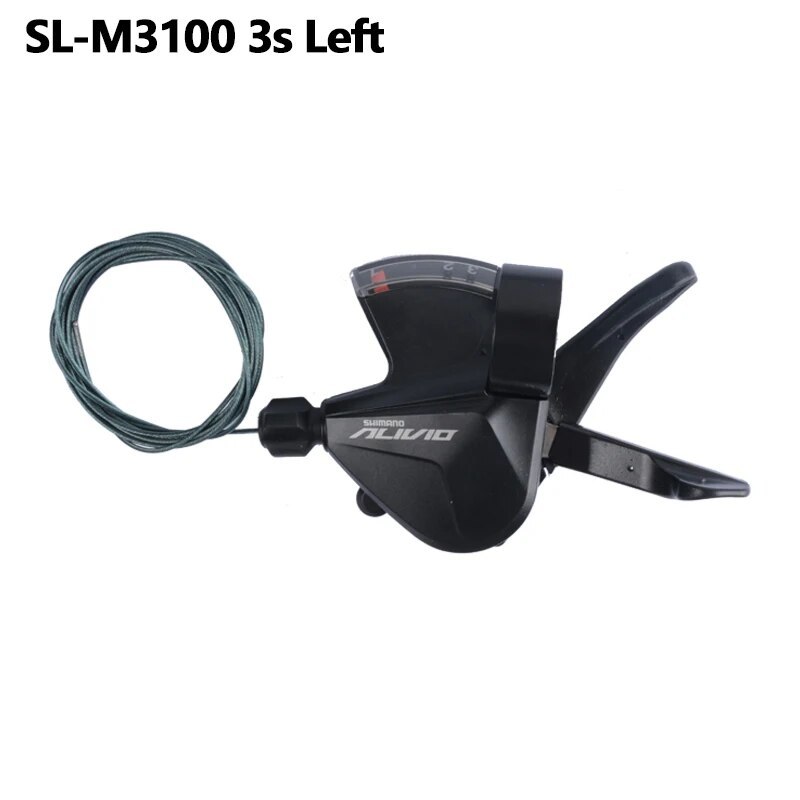

SL-M3100-L
series SHIMANO ALIVIO M3100 SERIES
color series colors
mount type - clamp ring ✔
variable speed handle pull line , inner line , steel ✔
the front variable speed 3
OPTICAL GEAR DISPLAY_ COMES WITH ✔
suggested variable speed handle coat line tube OT-SP41
the variable speed handle pulls the cable adjustment ✔
variable speed handle type RAPIDFIRE PLUS
THE VARIABLE SPEED HANDLE PULLS THE LINE , THE INNER LINE _OPTISLICK ✔

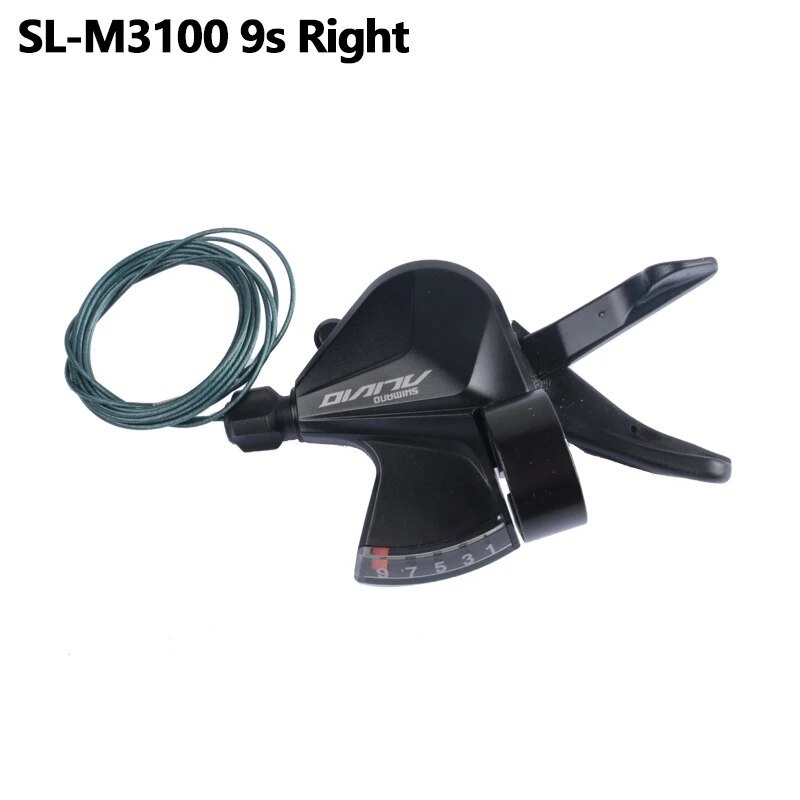

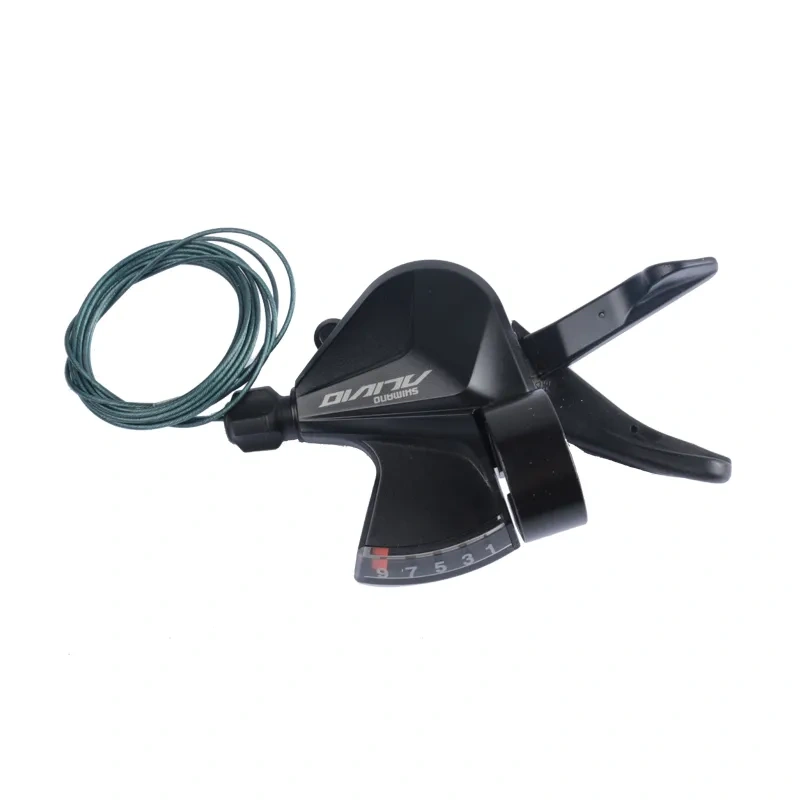

SL-M3100-R
series SHIMANO ALIVIO M3100 SERIES
color series colors
mount type - clamp ring ✔
variable speed handle pull line , inner line , steel ✔
compatible with the rear dialer type MTB 9 SPEED
maximum multi-shift (main handle/rear) 3
OPTICAL GEAR DISPLAY_ COMES WITH ✔
speed 9
suggested variable speed handle coat line tube OT-SP41
the variable speed handle pulls the cable adjustment ✔
variable speed handle type RAPIDFIRE PLUS
THE VARIABLE SPEED HANDLE PULLS THE LINE , THE INNER LINE _OPTISLICK ✔
